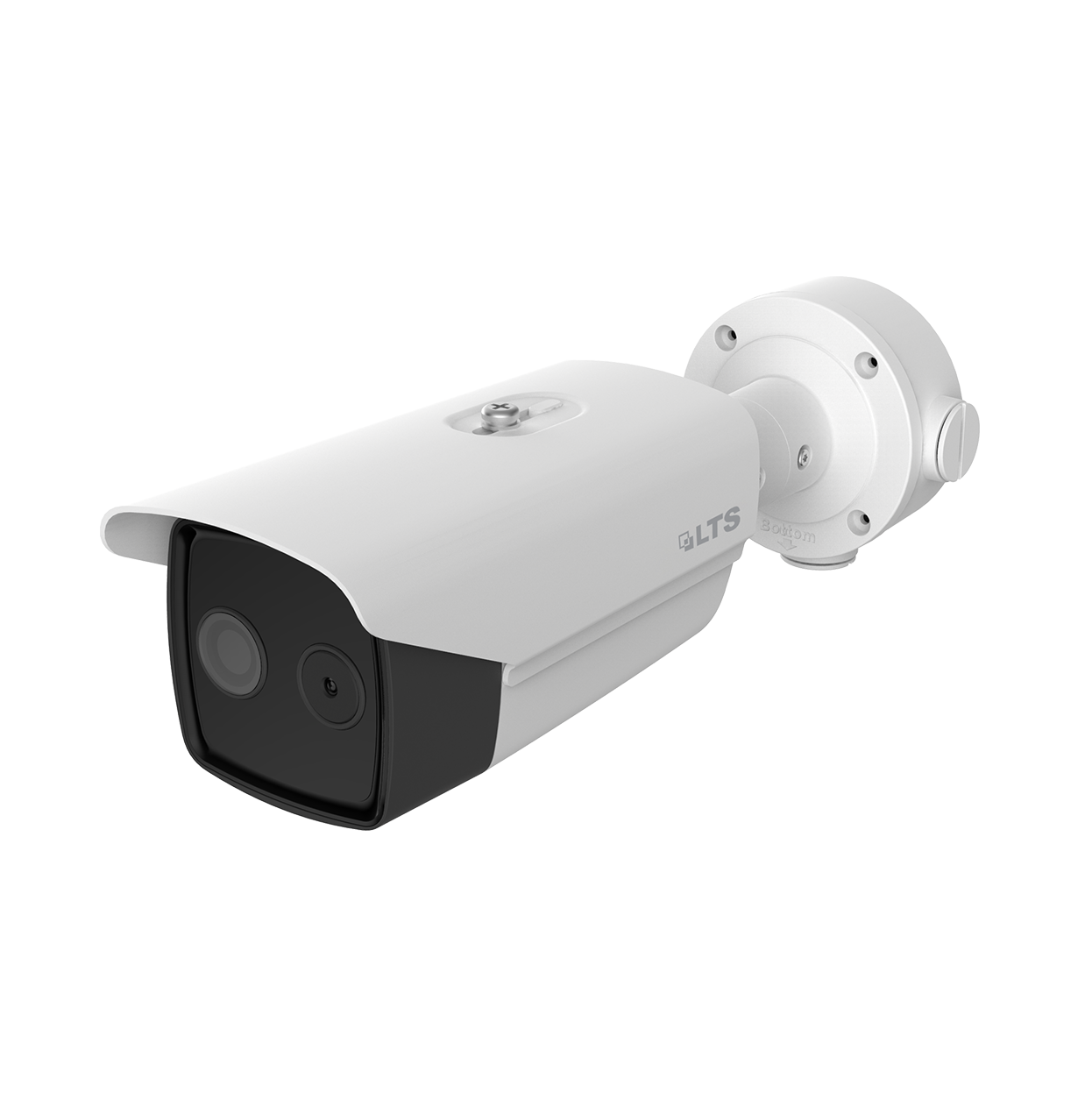

Thermal & Optical Bullet IP Camera

$849.00 USD
$849.00 USD
Sale Sold out

• Thermal & Optical Bullet IP Camera

• 160 x 120@25fps Thermal Image Sensor

• 3.1mm Fixed Lens (Thermal)

• 1920 x 1080@30fps

• 4mm Fixed Lens (Optical)

• MicroSD Card Slot up to 128GB

• IP67

• 3 Year Warranty

Smart Function (Thermal Imaging)

● Leading image processing technology: Adaptive AGC, DDE, 3D DNR, NETD less than 40 mk (@25°C,F#=1.1)

● Powerful behavior analysis function, based on deep learning algorithm: Line crossing, Intrusion, Region Entrance & Exit

● Reliable temperature exception alarm function

● Advanced fire detection algorithm

● Bi-spectrum image fusion, picture in picture preview


Thermal Imaging Module Function

● 160 × 120 (the resolution of output image is 320 × 240) resolution sensor, high sensitivity sensor, support contrast adjustment

● Shutter adjustment in various modes

● 3D DNR, 15 palettes of color adjustable, image detail enhancement

● Mirror image, digital zoom ×2, ×4, ×8, and local output



Camera Series Platinum Series
Camera Resolution 2.1MP / 1080P
Camera Technology Other
Camera Housing Bullet
Featured Product No
Specifications



Thermal Module

Image Sensor

Vanadium Oxide Uncooled Focal Plane Arrays

Max. Resolution

160 × 120 (the resolution of output image is 320 × 240)

Pixel Interval

17μm

Response Waveband

8μm to 14μm

NETD

less than 40 mk (@25°C,F#=1.1)

Lens (Focal Length)

3.1 mm

MRAD

5.48 mrad

Field of View

50° × 37.2° (H × V)

Min. Focusing Distance

0.2 m

Aperture

F1.1

Optical Module

Max. Image Resolution

1920 × 1080

Image Sensor

1/2.8” Progressive Scan CMOS

Min. Illumination

Color: 0.002 Lux @(F1.5,AGC ON), B/W: 0.0002 Lux @(F1.5, AGC ON)

Shutter Speed

1s to 1/100,000s

Lens (Focal Length)

4 mm

Field of View

87° × 46.2°(H × V)

WDR

Digital WDR

Day & Night

IR cut filter with auto switch

Image Function

Bi-spectrum Image Fusion

Fusion view of thermal view and overlaid details of the optical channel

Picture in Picture

Combins details of thermal and optical image PIP, overlay thermal image on

optical image

Smart Function

VCA (Video Content Analysis)

4 VCA rule types (Line Crossing, Intrusion, Region Entrance, and Region Exiting),

up to 8 VCA rules.

Temperature Measurement

3 temperature measurement rule types, 21 rules (10 points, 10 areas, and 1 line).

Temperature Range

-20 °C to +150 °C (-4 °F to +302°F)

Temperature Accuracy

± 8 °C (± 14.4 °F)

Fire detection

Dynamic fire point detection, up to 10 fire points detectable.





Infrared

IR Distance

Up to 131ft(40 m)

IR Intensity and Angle

Automatically adjusted

Network



Main Stream

Visible Light: 50Hz: 25fps (1920 × 1080), 25fps (1280 × 960), 25fps (1280 × 720)

Visible Light: 60Hz: 30fps (1920 × 1080), 30fps (1280 × 960), 30fps (1280 × 720) Thermal: 25fps (160 × 120 (the resolution of output image is 320 × 240))



Sub Stream

Visible Light: 50Hz: 25fps (704 × 576), 25fps (352 × 288), 25fps (176 × 144)

Visible Light: 60Hz: 30fps (704 × 480), 30fps (352 × 240), 30fps (176 × 120) Thermal: 25fps (160 × 120 (the resolution of output image is 320 × 240))

Video Compression

H.265/H.264/MJPEG, H.265+/H.264+ encoding with Baseline/Main/High Profile

Audio Compression

G .711u/G.711a/G.722.1/MP2L2/G.726/PCM

Protocols

IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS,NTP,

RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE

Simultaneous Live View

Up to 20

User/Host level

Up to 32 users, 3 levels: Administrator, Operator, User

Security Measures

User authentication (ID and PW), MAC address binding, HTTPS encryption, IEEE

802.1x access control, IP address filtering

Integration

Alarm Input

2-ch inputs (0-5vDC)

Alarm Output

2-ch relay outputs, alarm response actions configurable

Alarm Action

SD recording/Relay output/Smart capture/FTP upload/Email linkage

Audio Input

1 3.5mm Mic in/Line in interface. Line input: 2-2.4V[p-p], output

impedance:1KΩ±10%

Audio Output

Linear Level; Impedance: 600Ω

Reset

1 Reset Button

Ethernet

1 RJ45 10M/100M Self-adaptive Ethernet interface, 1 RS-485 interface

SD Memory Card

Built-in Micro SD card slot, support Micro SD/SDHC/SDXC card (up to 128G),

support manual/alarm recording

Analog Video Output

1.0V [p-p]/75Ω, PAL/NTSC/BNC

Application Programming

Open-ended API, support ISAPI, SDK and third-party management platform

Web Browser

IE9+, chrome31-chrome44, Firefox 30-Firefox51, Safari 5.02+(mac)





General

Menu language

English

Power

12 VDC± 20%

PoE (802.3af, class 4)

Power Consumption

12 VDC ± 20%: max. 12W

PoE (802.3af, class 4)

Working

Temperature/Humidity

-40 °C to 60 °C (-40 °F to 140 °F), 90% or less

Protection Level

IP66 Standard

TVS 6000V Lightning protection, surge protection, voltage transient protection

Dimensions

352.4 mm × 113.5 mm × 114.7 mm (13.9" × 4.5" × 4.5 ")

Weight

Approx. 1.5Kg (3.3lb)





Detection Range Table

* The table is only for reference, the performance may vary from camera to camera.

Different targets trigger the VCA events within different range limits.



VCA Range (Vehicles:

1.4×4.0m)

VCA Range (Humans:

1.8×0.5m)

Temperature Measurement

(Object:2×2 m)

Temperature measurement

(Object:1×1 m)

Fire Detection (Object:2×2 m)

Fire Detection (Object:1×1 m)

63 m

21 m

66 m

33 m

180 m

90 m



Wide Range Coverage

There is range limit for detecting, recognizing, and identifying human/vehicle targets.



Detection Range (Vehicles:

1.4×4.0m)

Detection Range (Humans:

1.8×0.5m)

Recognition Range (Vehicles:

1.4×4.0m)

Recognition Range (Humans:

1.8×0.5m)

Identification Range (Vehicles:

1.4×4.0m)

Identification Range (Humans:

1.8×0.5m)

280 m

91 m

70 m

23 m

35 m

11 m
