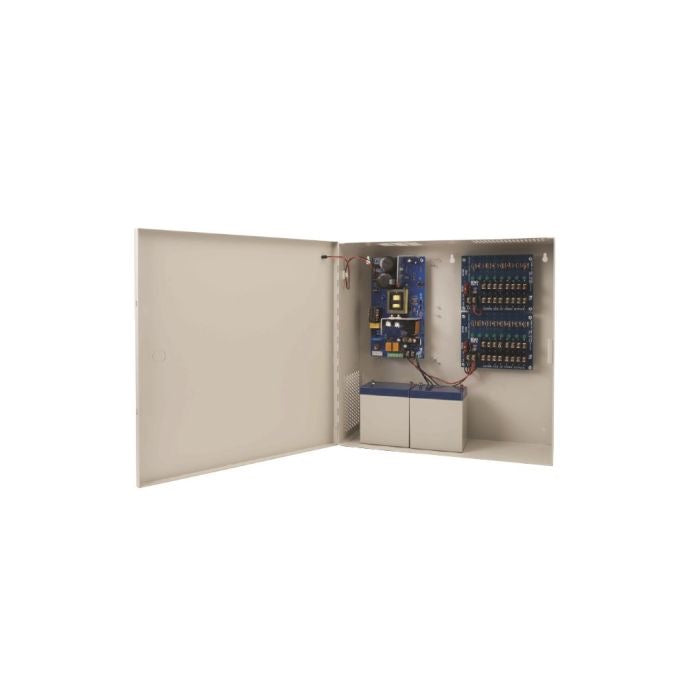

Securitron Power Supply 6A

Product Features Dual voltage 6 Amp 12 or 24VDC field selectable continuous output Tolerates brownout or overvoltage input +/- 15% of nominal voltage Thermal shutdown protection with auto restart Circuit breaker protects against overcurrent and reverse battery faults Dedicated battery charging circuit prevents overvoltage on locking devices Expandable up to 16 outputs; Class 2 power limited outputs available Available with a single relay fire trigger or individually fire trigger relayed outputs MagnaCare® lifetime replacement, no fault warranty Specification Data 6 Amp @ 12VDC or 24VDC output 115 or 230VAC/50 or 60HZ input Supports up to two (2) sealed gel, AGM or wet lead acid batteries High efficiency:90% @ 24V output, full load Output voltage ripple at full load 240mV p-p Operating Temperature: -4 to +122F [-20 to +50C] Dimensions: 14" x 14" x 4.75" enclosure Shipping Weight: 12.7lbs [5.76kg]
