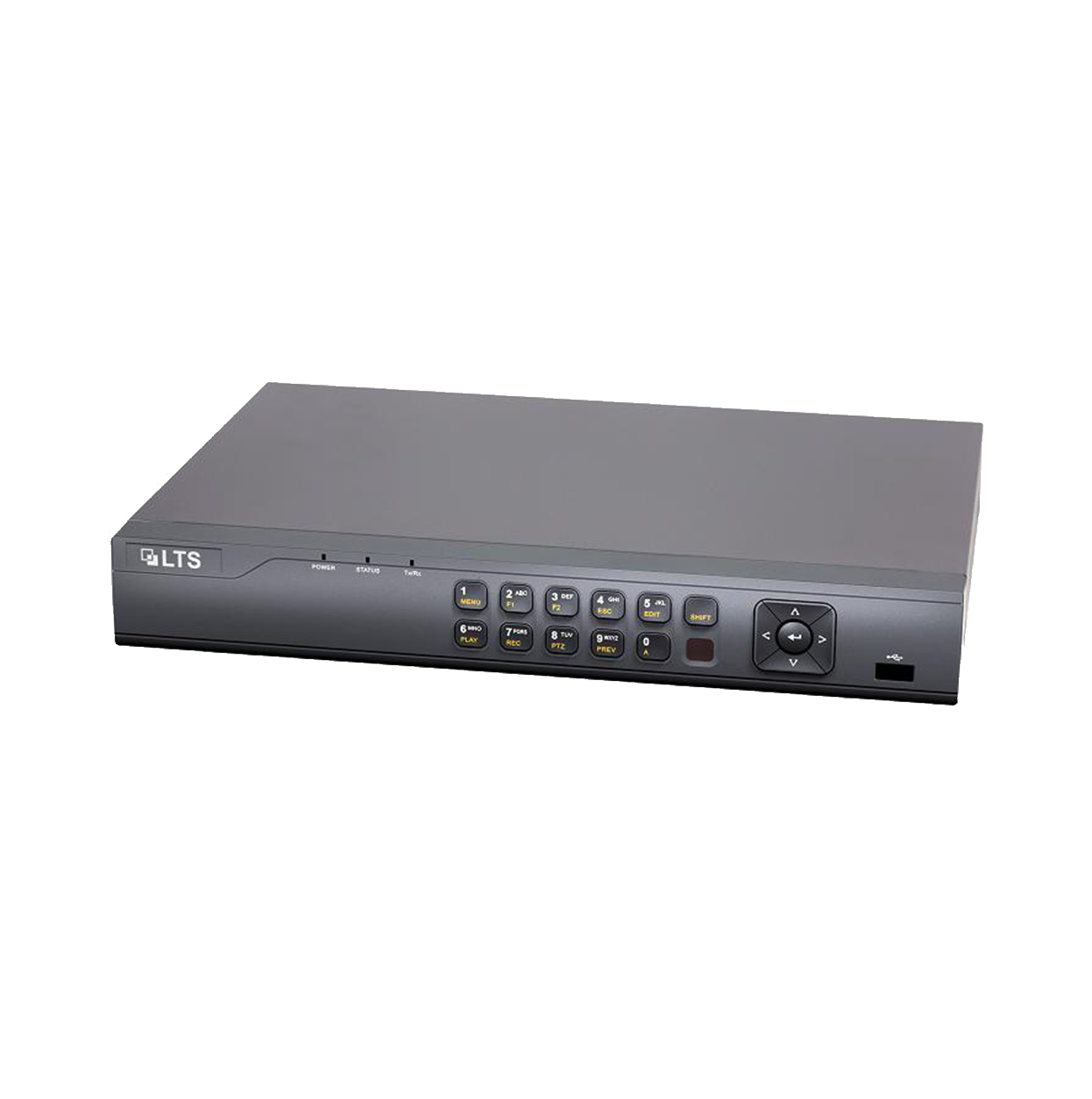

Platinum, TVI-P DVR, 16CH+4IP (up to 6MP), Audio/VGA/HDMI/BNC

$299.00 USD
$299.00 USD
Sale Sold out
  • Deep learning-based motion detection 2.0 for all analog channels
  • Deep learning-based perimeter protection
  • H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 video compression
  • HDTVI/AHD/CVI/CVBS/IP video inputs
  • Audio via coaxial cable
  • Up to 24-ch IP camera inputs (up to 6 MP)
  • Up to 10 TB capacity per HDD
Recorder Series TurboHD
Recorder Channel 16-Channel
Recorder Case Compact Case
Recorder Technology DVR
Featured Product No
Video No
Specifications
Motion Detection 2.0¹
Human/Vehicle Analysis Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and reduce false alarms caused by objects like leaves and lights
Quick search by object or event type is supported
Perimeter Protection¹
Human/Vehicle Analysis Up to 4-ch
Facial Detection¹
Facial detection and capture 1-ch human face capture (HD analog camera)
Recording
Video compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding resolution Main stream:
When 1080p Lite mode not enabled:
For 4 MP stream access:
4 MP lite@15 fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
For 3 MP stream access:
3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15 fps
For 1080p stream access:
1080p/720p@15 fps; VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)
For 720p stream access:
720p/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)
When 1080p Lite mode enabled:
4 MP lite/3 MP@15 fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)

Sub-stream: WD1/4CIF@12 fps; CIF@25 fps (P)/30 fps (N)
Video bitrate 32 Kbps to 6 Mbps
Dual stream Support
Stream type Video, Video & Audio
Audio compression G.711u
Audio bitrate 64 Kbps
Video and Audio
IP video input² 2-ch (up to 18-ch)
Enhanced IP mode on: 8-ch (up to 24-ch), each up to 4 Mbps

Up to 6 MP resolution

Support H.265+/H.265/H.264+/H.264 IP cameras
Analog video input 16-ch
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDTVI input 4 MP, 3 MP, 1080p@30 fps, 1080p@25 fps, 720p@60 fps, 720p@50 fps, 720p@30 fps, 720p@25 fps
The 3 MP signal input is only available for channel 1/2/3/4 of LTD8316M-ET.
AHD input 4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
HDCVI input 4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
CVBS input PAL/NTSC
CVBS output 1-ch, BNC (1.0 Vp-p, 75 Ω)
Resolution: PAL: 704 × 576, NTSC: 704 × 480
HDMI/VGA output 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz, HDMI/VGA simultaneous output
Audio input 1-ch, RCA (2.0 Vp-p, 1 KΩ)

16-ch via coaxial cable
Audio output 1-ch, RCA (Linear, 1 KΩ)
Two-way audio 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
Synchronous playback 16-ch
Network
Remote connection 128
Network protocol TCP/IP, PPPoE, DHCP, LTS-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Network interface 1,RJ45 10/100/1000 Mbps self-adaptive
Ethernet interface
Wi-Fi Connectable to Wi-Fi network by Wi-Fi dongle through USB interface
Auxiliary interface
SATA 2 SATA interfaces, up to 10 TB capacity for each disk
Serial interface RS-485 (half-duplex)
USB interface Front panel: 1 × USB 2.0
Rear panel: 1 × USB 3.0
Alarm in/out N/A
General
Power supply 12 VDC, 3.3 A
Consumption (without HDD) ≤ 40 W
Working temperature -10 °C to 55 °C (14 °F to 131 °F)
Working humidity 10% to 90%
Dimension (W × D × H) 380 × 320 × 48 mm (15.0 × 12.6 × 1.9 inch)
Weight (without HDD) ≤ 2 kg (4.4 lb)
