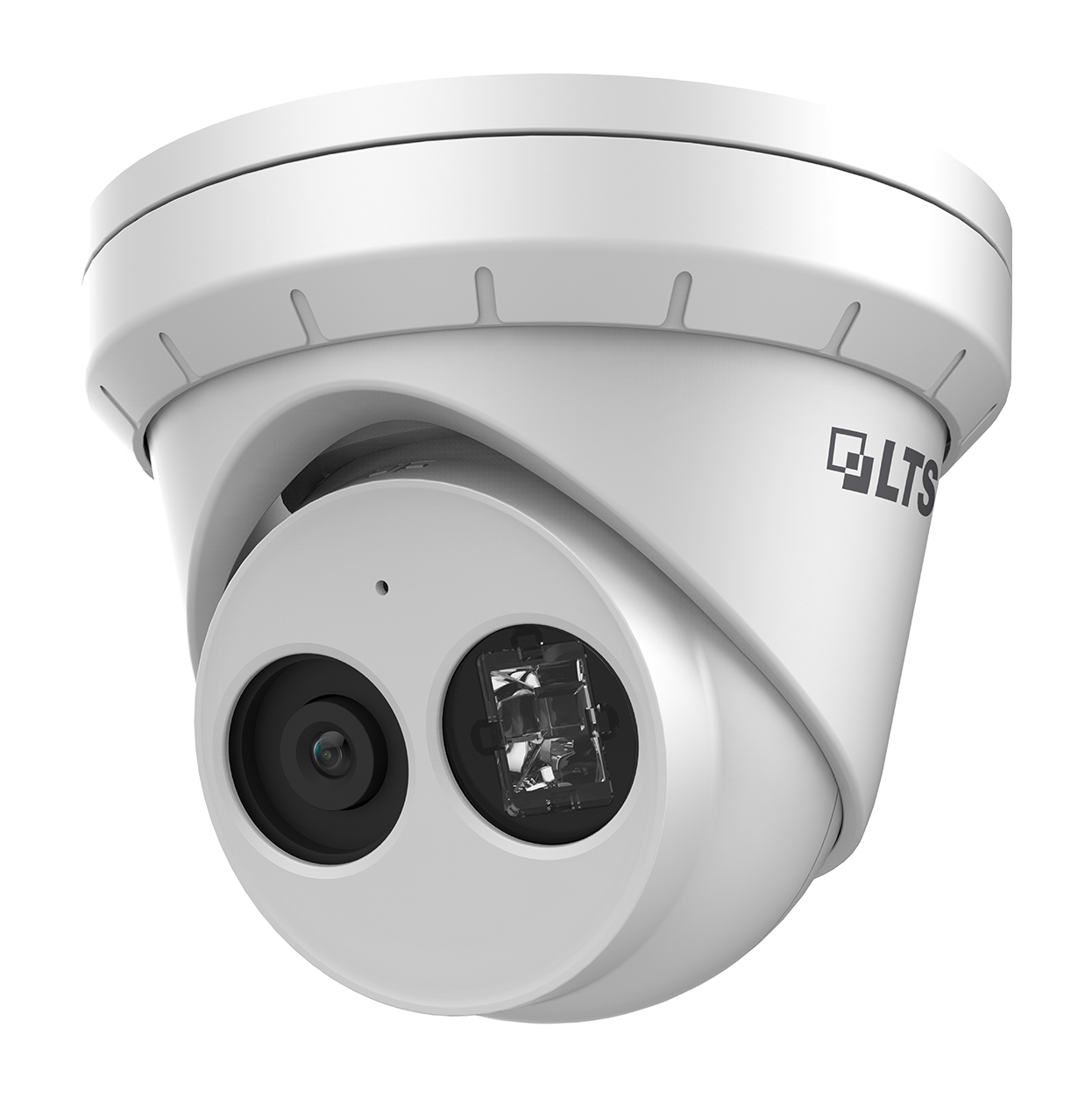

Platinum Turret Network IP Camera 4K - 4mm

$229.00 USD
$229.00 USD
Sale Sold out
  • 8MP/4K High Definition Turret Camera
  • 4mm Fixed Lens
  • Matrix IR 2.0, IR Range up to 100 feet
  • 3840x2160@20fps
  • H.265, H.265+, H.264, H.264+ Ready
  • True WDR 120dB
  • IP67
  • MicroSD Slot up to 128GB
  • DC 12V, PoE
Camera Series Platinum Series
Camera Resolution 4K
Camera Technology IP / Network
Camera Housing Turret
Featured Product No
Specifications
Camera
Image Sensor 1/2.5" Progressive Scan CMOS
Min. Illumination 0.028 Lux @ (F2.0, AGC ON), 0 Lux with IR
Shutter Speed 1/3 s to 1/10,000 s
Lens 4mm, horizontal FOV: 79°, vertical FOV: 42°, diagonal FOV: 95°
Lens Mount M12
Day & Night IR cut filter
DNR 3D DNR
Wide Dynamic Range True WDR 120dB
Angle Adjustment Pan:0° ~ 360°, Tilt: 0° ~ 75°, Rotation: 0° ~ 360°
Compression Standard
Video Compression

Main stream: H.265/ H.264
Sub stream: H.265/H.264/ MJPEG
Third stream: H.265/ H.264
H.265 Type Main Profile
Video Bit Rate 32 Kbps ~ 16 Mbps
Dual Stream Support
Max. Resolution 3840 × 2160
Main Stream

50Hz: 12.5 fps (3840 × 2160), 20fps (3072 × 1728), 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
60Hz: 15 fps (3840 × 2160), 20fps (3072 × 1728), 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
Sub Stream

50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Third Stream

50Hz: 25fps (1280×720, 640×360, 352×288)
60Hz: 30fps (1280×720, 640×360, 352×240)
Behavior Analysis Line crossing detection, intrusion detection
Others Saturation, Brightness, Contrast adjustable by client software or web browser, Mirror, BLC, ROI, Dual Stream, Anti-Flicker, Privacy Mask
Network
Network Storage Support microSD/SDHC/SDXC card (128GB), local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger Motion Detection, Tampering Alarm, Intrusion Detection, Line Crossing Detection, HDD Full, HDD Error, Network Disconnected, IP Address Conflicted
Protocols TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
General Password Protection, IP Address Filtering, Anonymous Access, Watermark
Standard ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI
Interface
Communication Interface 1 RJ45 10M/100M Self Adaptive Ethernet port
Reset Yes
General
Working Temperature
/Humidity 		 -22 °F ~ 140 °F (-30 °C ~ 60 °C)
Humidity 95% or less (non-condensing)
Power Supply DC12 V ± 25%, Φ5.5 mm coaxial power plug PoE (802.3af, class 3)
Power Consumption

12 VDC, 0.5A, max. 6W PoE (802.3af, 36V to 57V), 0.3A to 0.2A, max. 7.5W
IR Range Up to 100ft
Weather Proof Ratings IP67
Dimensions 5.01″ × 3.78″ (Φ 127.3 × 95.9 mm)
Weight 1.4 lb. (620 g)
