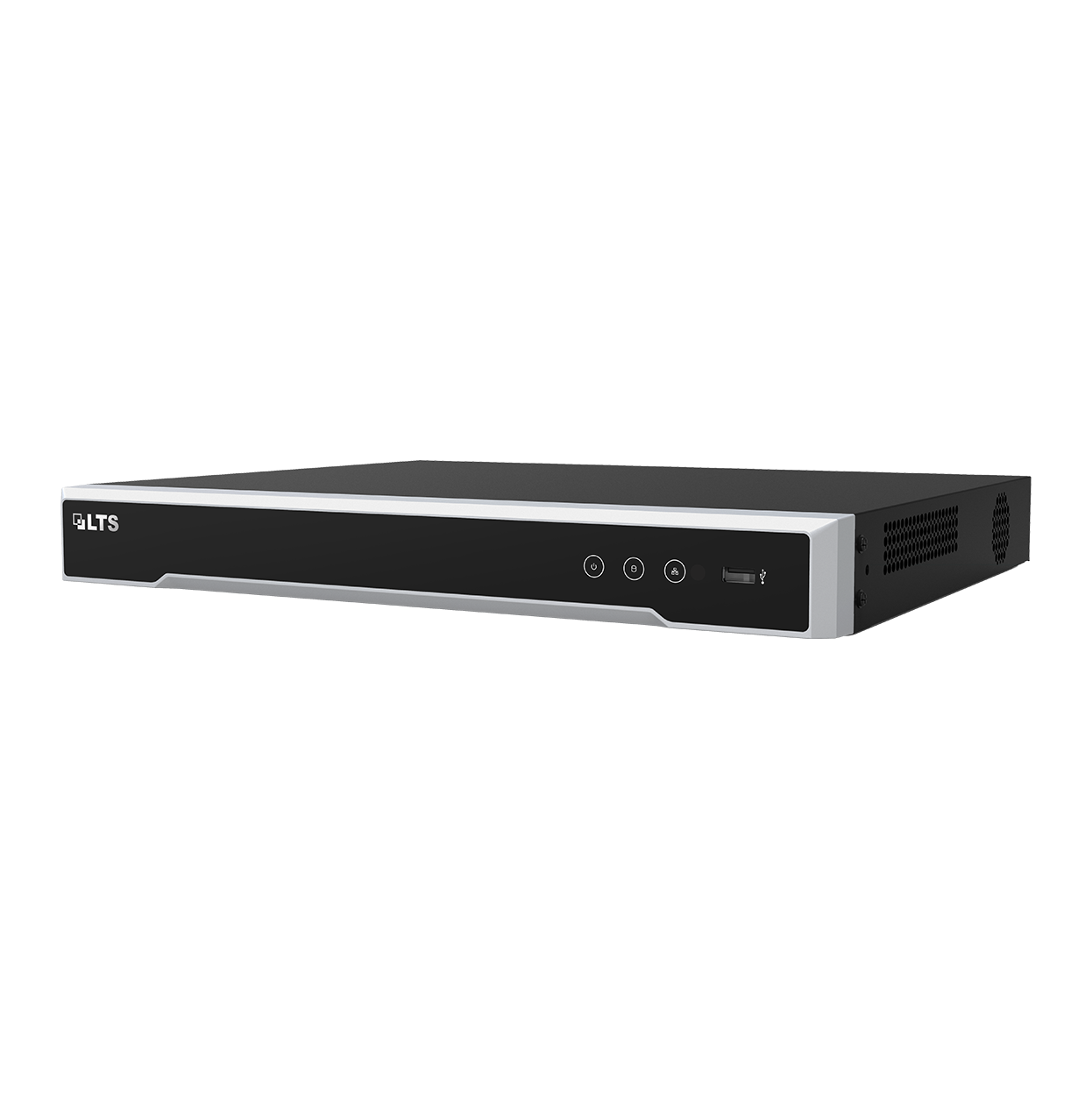

Platinum Professional Plus Level 16 Channel 4K NVR 1U-P16

$669.00 USD
$669.00 USD
Sale Sold out
  • Quad-core 16 Channel Network Video Recorder
  • Support Live View, Storage, and Playback up to 12MP IP Camera
  • 160MB Input Bandwidth
  • 16 Built-in PoE
  • 4K (3840x2160) HDMI, VGA, CVBS Video Output
  • 2 SATA up to 12TB HDD
  • 4 POS via TCP/IP
  • Support 6MP/12MP Fisheye
  • Support H.264/H.264 Zip+, H.265 Ready
Recorder Series Platinum Series
Recorder Channel 16-Channel
Recorder Case 1U Case
Recorder Technology IP / NVR
Featured Product No
Video No
Specifications
Video/Audio Input
IP Video Input 16-CH, Up to 12MP Resolution
Two-Way Audio Input 1-CH, RCA (2.0 Vp-p, 1kΩ)
Network
Incoming Bandwidth 160Mbps
Outgoing Bandwidth 256Mbps
Remote Connection 128
Video/Audio Output
Recording Resolution 12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
HDMI Output 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 ×1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
VGA Output 1-ch, resolution: 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
CVBS Output 1-ch
Audio Output 1-CH, RCA (Linear, 1kΩ)
Decoding
Live View/ Playback Resolution 12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous Playback 16-CH
Capability 4-ch @ 4K, or 16-ch @1080p
Hard Disk
SATA 2 SATA Interfaces for 2 HDDs
Capacity Up to 8TB for Each Disk
External Interface
Network Interface 1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces
USB Interface Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
Alarm In/Out 4/1
PoE
Interface 16 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
Max. Power ≤200W
Supported Standard IEEE 802.3 af/at
General
Power Supply 100~240V AC
Consumption ≤15W
Working Temperature +14ºF ~ +131 ºF(-10ºC ~ +55ºC)
Working Humidity 10% - 90%
Casing 19-Inch Rack-Mounted 1U Casing
Dimension 380 × 315× 52 mm (15" × 12.4" × 2.0")
Weight ≤8.8lb (4Kg)
