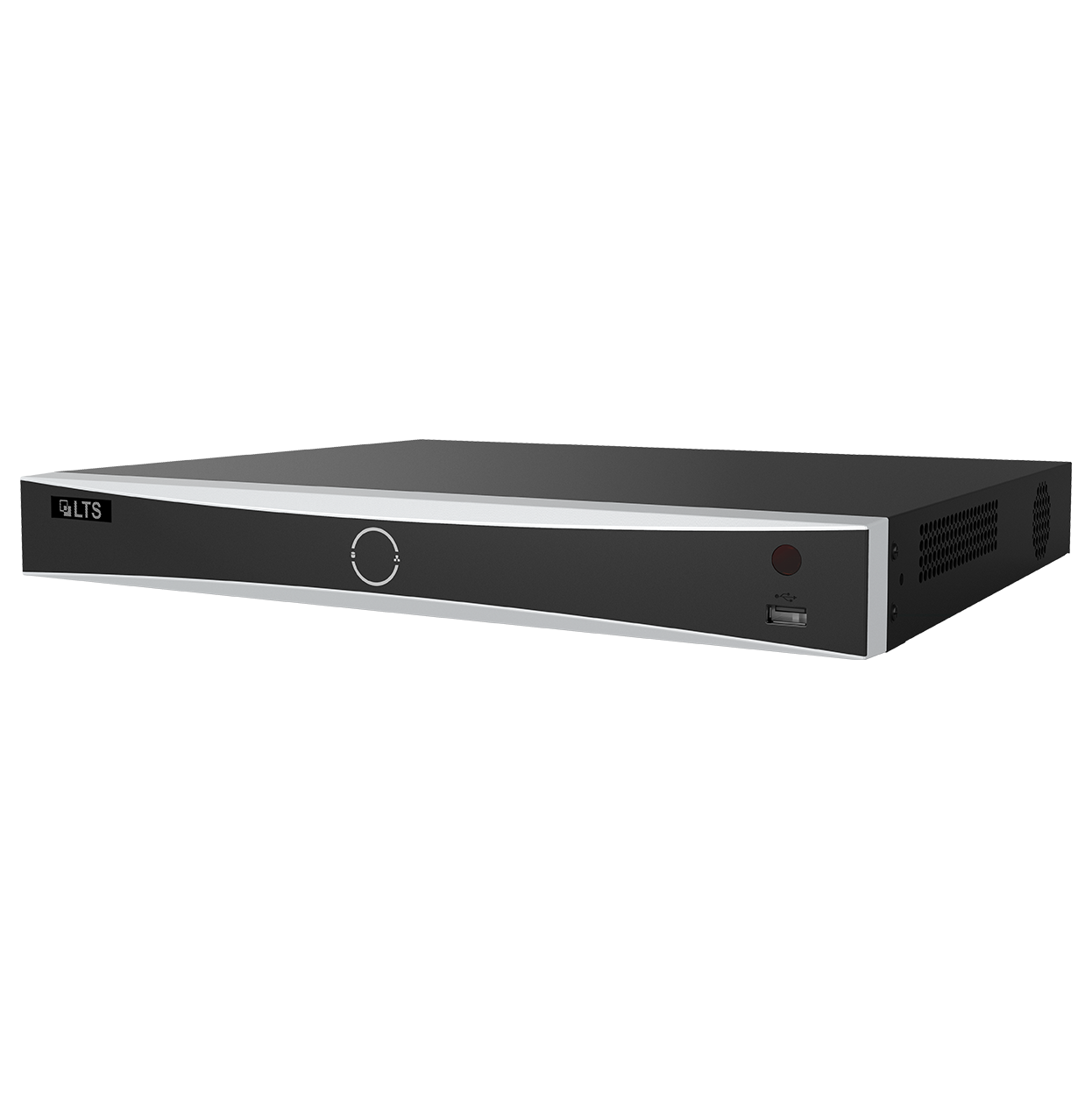

16CH VCA Network Video Recorder with MD 2.0 - Human and Vehicle Detection

$599.00 USD
$599.00 USD
Sale Sold out
  • 16 Channel Network Video Recorder
  • Support Live View, Storage, Playback up to 4K(8MP) IP Camera
  • 160MB Bandwidth
  • 16 Built-in PoE
  • 4K (3840x2160) HDMI Video Output
  • 2 SATA up to 6TB each HDD
  • H.264/H.264 Zip+
Recorder Series Platinum Series
Recorder Channel 16-Channel
Recorder Case 1U Case
Recorder Technology IP / NVR
Featured Product No
Video No
Specifications
Video/Audio Input
IP Video Input 16-CH
Two-Way Audio Input 1-CH, RCA (2.0 Vp-p, 1kΩ)
Network
Incoming Bandwidth 160Mbps
Outgoing Bandwidth 160Mbps
Remote Connection 128
Video/Audio Output
Recording Resolution 8MP/6MP/5MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF
HDMI Output 4K (3840 × 2160)/20Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080p/60Hz, 1600 ×1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
VGA Output 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Audio Output 1-CH, RCA (Linear, 1kΩ)
Decoding
Decoding Format H.265/H.264/H.264+/MPEG4
Recording Resolution 8MP/6MP/5MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous Playback 16 -ch
Capability 2-ch @ 4K, or 8-ch @1080p
Hard Disk
SATA 2 SATA Interfaces for 2 HDDs
Capacity Up to 6TB for Each Disk
External Interface
Network Interface 1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces
USB Interface 1 × USB 2.0 and 1 × USB 3.0
Alarm In/Out 4/1
PoE
Interface 16RJ-45 10/100 Mbps self-adaptive Ethernet interfaces
Max. Power ≤200W
Supported Standard IEEE 802.3 af/at
General
Power Supply 100~240V AC
Consumption ≤ 15W
Working Temperature 14°F - 131°F(-10 °C ~ +55 °C)
Working Humidity 10% - 90%
Casing 15-inch rack-mounted 1U chassis
Dimension 380 × 315× 52 mm (15" × 12.4" × 2.0")
Weight ≤ 1 kg (2.2 lb)
