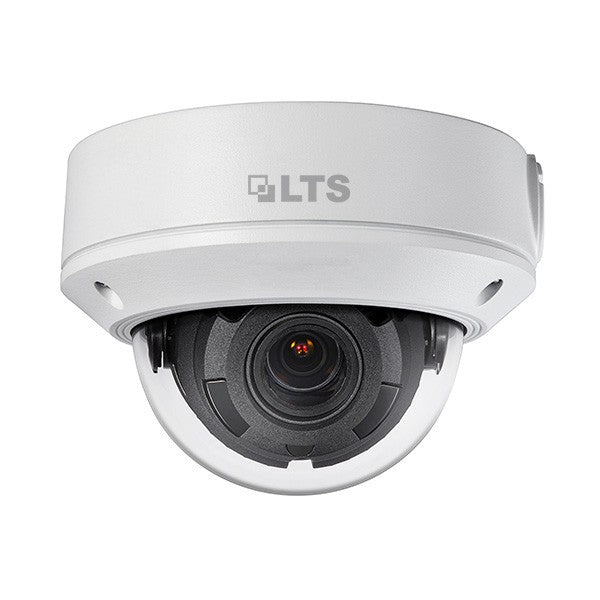

Platinum Network Vandal Dome IP Camera - 4MP

$229.00 USD
$229.00 USD
Sale Sold out
  • 4MP High Definition
  • Up to 2560x1440@20fps
  • 2.8-12mm Varifocal Motorized Lens
  • IR Range up to 100 feet
  • H.265+, H.265, H.264, H.264 Zip+ Ready
  • True WDR 120dB
  • IP67, IK10
  • DC 12V, PoE
  • Metal Housing
Camera Series Platinum Series
Camera Resolution 4MP
Camera Technology IP / Network
Camera Housing Dome
Featured Product No
Specifications
Camera
Image Sensor 1/3 " Progressive Scan CMOS
Min. Illumination 0.01Lux @ (F1.2, AGC ON), 0 .018Lux @ (F1.6, AGC ON)
Shutter Speed 1/3 s to 1/10,000 s
Lens 2.8mm to 12mm Horizontal view: 98° to 28°,Vertical view: 51° to 16°,Diagonal view: 115° to 32°
Lens Mount Φ14
Day & Night IR cut filter
DNR 3D DNR
Wide Dynamic Range True WDR 120dB
Angle Adjustment Pan: 0° to 355°, tilt: 0°to 70°, rotation: 0° to 360°
Compression Standard
Video Compression Main stream: H.2 65/H.264  Sub stream: H.265/H.2 64/MJPEG
H.264 / H.264+Type Baseline Profile/ Main Profile/ High Profile
H.265 / H.265+ Type Main Profile / Main Stream Support
Video Bit Rate 32 Kbps ~ 8 Mbps
Max. Resolution 2560 × 1440
Main Stream 50Hz: 20fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60Hz: 20fps (2560 × 1440, 1920 × 1080, 1280 × 720)
Sub Stream 50Hz: 20fps (704 × 576, 352 × 288, 640 × 480, 320 × 240)  60Hz: 20fps (704 × 480, 352 × 240, 640 × 480, 320 × 240)
Image Enhancement BLC/ 3D DNR
Image Settings Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
Network
Network Storage NAS (NFS,SMB/CIFS)
Alarm Trigger Motion detection, video tampering alarm, illegal login
Protocols TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
General Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
Standard ONVIF(PROFILE S,PROFILE G),ISAPI
Interface
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
Reset Built-in microSD/SDHC/SDXC slot, up to 128 GB
General
Working Temperature
/Humidity 		 -22 °F ~+122 °F(-30 °C ~ +50 °C) Humidity 95% or less (non-condensing)
Power Supply DC 12V ± 25%
Power Consumption Max. 5W 12 VDC ± 25%,
IR Range Up to 100ft
Weather Proof Ratings IP67
Impact Protection IK10
Dimensions Φ 5.6″ × 3.9″ (Φ 141 × 99.6 mm)
Weight 1.8lb. (820 g)
Video No
