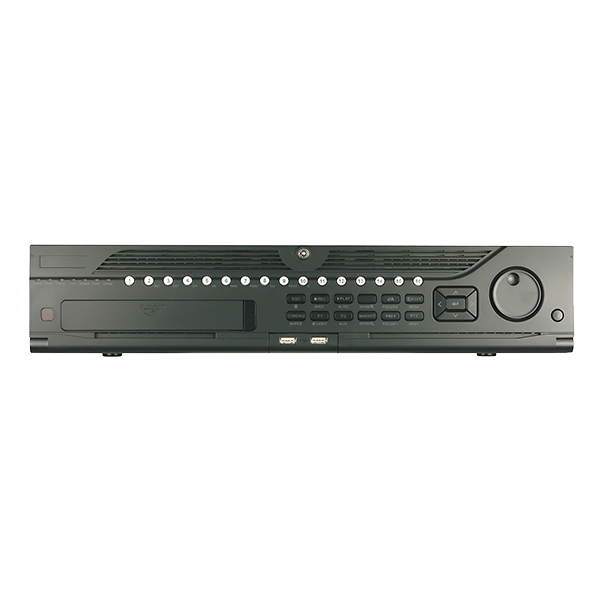

Platinum Enterprise Level 64 Channel NVR 2U

$2,299.00 USD
$2,299.00 USD
Sale Sold out
  • 64 Channel Network Video Recorder
  • Support Live View, Recording, Playback up to 12MP IP Camera
  • Quad-core CPU
  • 320Mb Bandwidth
  • 4K (3840x2160) HDMI Video Output
  • Supports 8 SATA up to 10TB each
  • 2 RJ45 10/100/1000Mbps Ethernet Interfaces
  • RAID 0, 1, 5, 10 Hot Swap
  • H.264/H.264 Zip+/H.265 Ready
Recorder Series Platinum Series
Recorder Channel 64-Channel
Recorder Case 2U Case
Recorder Technology IP / NVR
Featured Product No
Video No
Specifications
Video/Audio Input
IP Video Input 64-CH
Up to 12MP resolution
Two-Way Audio Input 1- ch, RCA (2.0 Vp- p, 1kΩ)
Network
Incoming Bandwidth 320Mbps or 200Mbps(When RAID is enabled)
Outgoing Bandwidth 256Mbps or 200Mbps(When RAID is enabled)
Remote Connection 128
Video/Audio Output
Recording Resolution 12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/QCIF
VGA1/HDMI1 output HDMI1: 4K(3840×2160)/60Hz,4K(3840×2160)/30Hz,2K(2560×1440)/60Hz,1920 × 1080P /60Hz, 1600 × 1200 /60Hz, 1 280 × 1024 /60Hz, 1280 × 720 /60Hz, 1024 × 768 /60Hz;
VGA1: 2K(2560×1440)/60Hz, 1920 × 1080P /60Hz, 1600 × 1200 /60Hz, 1280 ×1024 /60Hz, 1280 × 720 /60Hz, 1024 × 768 /60Hz
VGA2/HDMI2 output 1920 × 1080P /60Hz, 1280 × 1024 /60Hz, 1280 × 720 /60Hz, 1024 × 768 /60Hz
Audio Output 2- ch, RCA (2.0Vp-p,1kΩ)
Decoding
Decoding Format H.265/H.264+/H.264/MPEG4
Recording Resolution 12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/QCIF
Synchronous Playback 16-ch
Hard Disk
SATA 8 SATA interfaces for 8HDDs
eSATA 1 eSATA Interface
Capacity Up to 10TB capacity for each HDD
Disk Array
Array Type RAID0, RAID1, RAID5, RAID6,RAID10
Number of array 4
Interface
Network Interface 2 RJ-45 10 /100 /1000 Mbps self-adaptive Ethernet interfaces
Serial Interface RS-232; RS-485; Keyboard;
USB Interface 2 × USB 2.0 on front panel and 1× USB 3.0 on rear panel
Alarm In/Out 16/4
General
Power Supply 100 ~ 240 VAC, 50 ~ 60 Hz
Consumption ≤ 30 W(without hard disk)
Working Temperature 14°F - 131°F(-10 °C ~ +55 °C)
Working Humidity 10% - 90%
Casing 19-inch rack-mounted 2U chassis
Dimension 17.5" ×18.5"×3.5"(445 × 470 ×90 mm)
Weight ≤ 22 lb (10 Kg,without hard disk)
