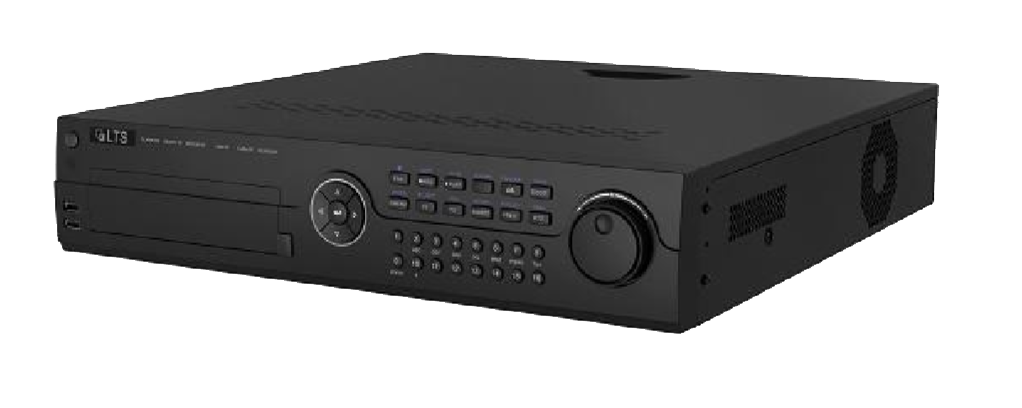

Platinum Enterprise Level 64 Channel NVR

$1,899.00 USD
$1,899.00 USD
Sale Sold out

Professional and Reliable

●  New logical and visualized GUI design
●  Dual-OS design to ensure high reliability of system running
●  ANR technology to enhance the storage reliability when the network is disconnected
●  Configurable normal or hot spare working mode to constitute an N+1 hot spare system



Video Input and Transmission

●  Adopt stream over TLS encryption technology (enhanced SDK service and RTP over HTTPS protocol)
which provides more secure stream transmission service (max. 128 Mbps TLS stream outgoing
bandwidth, when RAID is enabled, it will restrict TLS stream outgoing bandwidth to 64 Mbps)
●  Up to 64-ch cameras can be connected (up to 12 MP)
●  Connectable to the third-party network cameras



Compression and Recording

●  H.265+ compression effectively reduces the storage space by up to 75%
●  Full channel recording at up to 12MP resolution



HD Video Output

●  HDMI1/VGA1 and HDMI2/VGA2 outputs provided
●  HDMI1 Video output at up to 4K (3840 × 2160) resolution



Storage and Playback

●  Up to 8 SATA interfaces and 1 eSATA interface for HDD connection
●  10TB capacity for each HDD
●  16-ch synchronous playback at up to 1080p resolution
●  Important files management
●  HDD health monitoring



Smart &POS Function

●  Supports multiple VCA (Video Content Analytics) events
●  Smart search for the selected area in the video; and smart playback to improve the playback
efficiency
●  Supports VCA search for fire/ship/temperature/temperature difference detection triggered video
files
●  POS information overlay on live view and playback
●  POS triggered recording and alarm



Network & Ethernet Access

●    LTS-Connect for easy network management
●    2 Gigabit Ethernet network interfaces
Recorder Series Platinum Series
Recorder Channel 64-Channel
Recorder Case 1.5U Case
Recorder Technology IP / NVR
Featured Product No
Video No
Specifications



Model



LTN8964-8



Video/Audio input



IP video input

64-ch

Up to 12 MP resolution

Two-way audio

1-ch, RCA (2.0 Vp-p, 1 k Ω)



Network

Incoming bandwidth

320 Mbps or 200 Mbps (when RAID is enabled)

Outgoing bandwidth

256 Mbps, or 200 Mbps (when RAID is enabled)

Remote connection

128



Video/

Audio output

Recording resolution

12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF

/2CIF/CIF/QCIF

CVBS output (Optional)

1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480



VGA1 /HDMI1 output resolution

HDMI1: 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz,

1280 × 720/60Hz, 1024 × 768/60Hz

VGA1: 2K (2560 × 1440)/60Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

VGA2 /HDMI2 output resolution

1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 ×

768/60Hz

Audio output

2-ch, RCA (2.0Vp-p, 1 KΩ)



Decoding

Decoding format

H.265+/H.265/H.264/H.264+/MPEG4

Live view/Playback resolution

12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF

/2CIF/CIF/QCIF

Synchronous playback

16-ch

Capability

2-ch @ 12 MP (20fps) / 4-ch @ 8 MP (25fps) / 8-ch @ 4MP (30fps) / 16-ch @ 1080p (30fps)

Network management

Network protocols

TCP/IP, DHCP, LTS-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS



Hard disk

SATA

8 SATA interfaces for 8HDDs

eSATA

1 eSATA interface

Capacity

Up to 10TB capacity for each HDD



Disk array

Array type

RAID0, RAID1, RAID5, RAID6, RAID10

Number of arrays

4



External interface



Network interface

2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface



Serial interface

RS-232; RS-485; Keyboard



USB interface

Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0



Alarm in/out

16/4



General

Power supply

100 to 240 VAC, 50 to 60 Hz

Max. Power

200 W

Consumption (without HDD)

≤ 30 W

Working temperature

-10 °C to 55 °C (14 °F to 131 °F)

Working humidity

10 to 90 %

Dimensions(W × D × H)

445 × 470 ×90 mm (17.5"× 18.5" × 3.5")

Weight (without HDD)

≤ 8 kg (17.6 lb)


Video No
