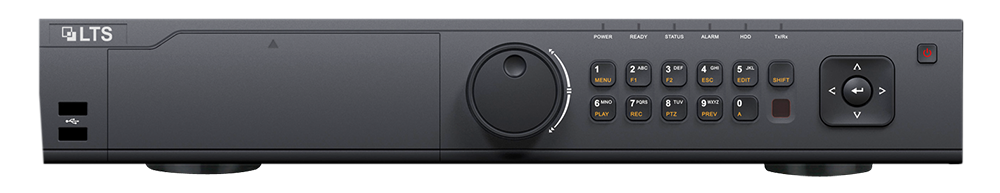

Platinum Enterprise Level 32 Channel NVR

$899.00 USD
$899.00 USD
Sale Sold out
  • New logical and visualized GUI design
  • Dual-OS design to ensure high reliability of system running
  • ANR technology to enhance the storage reliability when the network is disconnected
  • Adopt stream over TLS encryption technology (enhanced SDK service and RTP over HTTPS protocol) which provides more secure stream transmission service (max. 128 Mbps TLS stream outgoing bandwidth)
  • Up to 32-ch IP cameras can be connected (up to 12 MP)
  • Connectable to the third-party network cameras
  • H.265+ compression effectively reduces the storage space and costs by up to 75%
  • Full channel recording at up to 12MP resolution
  • HDMI and VGA independent outputs provided
  • HDMI Video output at up to 4K (3840 × 2160) resolution
  • Up to 4 SATA interfaces for HDD connection
  • 16-ch synchronous playback at up to 1080p resolution
  • Important files management
  • HDD health monitoring
  • Supports multiple VCA (Video Content Analytics) events
  • Smart search for the selected area in the video; and smart playback to improve the playback efficiency
  • Supports VCA search for fire/ship/temperature/temperature difference detection triggered video files
  • POS information overlay on live view and playback
  • POS triggered recording and alarm
  • LTS-Connect for easy network management
  • Gigabit Ethernet network interface
Recorder Series Platinum Series
Recorder Channel 32-Channel
Recorder Case 1.5U Case
Recorder Technology IP / NVR
Featured Product No
Video No
Specifications

Model

LTN8932H



Video/Audio input



IP video input

32-ch

Up to 12 MP resolution

Two-way audio

1-ch, RCA (2.0 Vp-p, 1 k Ω)



Network

Incoming bandwidth

256 Mbps

Outgoing bandwidth

256 Mbps

Remote connection

128













Video/Audio output

Recording resolution

12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA

/4CIF/DCIF/2CIF/CIF/QCIF

CVBS output

1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480

HDMI1 output resolution

4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K（2560×1440）

/60Hz，1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

VGA output resolution

2K（2560×1440）/60Hz，1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280

× 720/60Hz, 1024 × 768/60Hz，HDMI1/VGA Simultaneous Output

HDMI2 output resolution

1920 × 1080/60Hz， 1280 × 1024/60Hz ， 1280 × 720/60Hz， 1024 ×

768/60Hz

Audio output

1-ch, RCA (Linear, 1 KΩ)







Decoding

Decoding format

H.265/H.265+/H.264/H.264+/MPEG4

Live view / Playback resolution

12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA

/4CIF/DCIF/2CIF/CIF/QCIF

Synchronous playback

16-ch

Capability

2-ch @ 12 MP (20fps) / 4-ch @ 8 MP (25fps) / 8-ch @ 4MP (30fps) / 16-ch @ 1080p (30fps)

Network management

Network protocols

TCP/IP, DHCP, LTS-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS



Hard disk

SATA

4 SATA interfaces for 4HDDs

Capacity

Up to 8TB capacity for each HDD

eSATA

1 eSATA interface





External interface

Network interface

2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces

 Serial interface

1 RS-485 (half-duplex), 1 RS-232

 USB interface

Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0

 Alarm in/out

16/4 (16/8 optional)













General

 Power supply

100 to 240 VAC

Power

≤ 80 W

Consumption (without hard disk)



≤ 20 W

Working temperature

-10 °C to 55 °C (14 °F to 131 °F)

Working humidity

10 to 90 %

Dimensions (W×D×H)

445 × 400 ×71 mm ( 17.5"× 15.7" × 2.8")

Weight

(without hard disk)



≤ 5 kg (11 lb)
