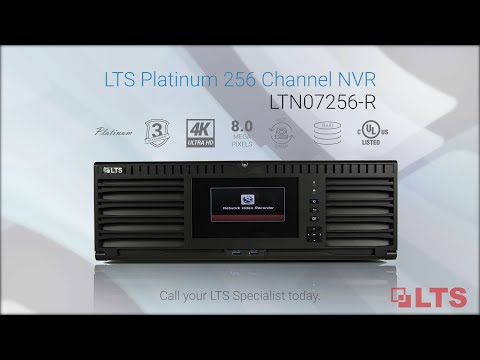

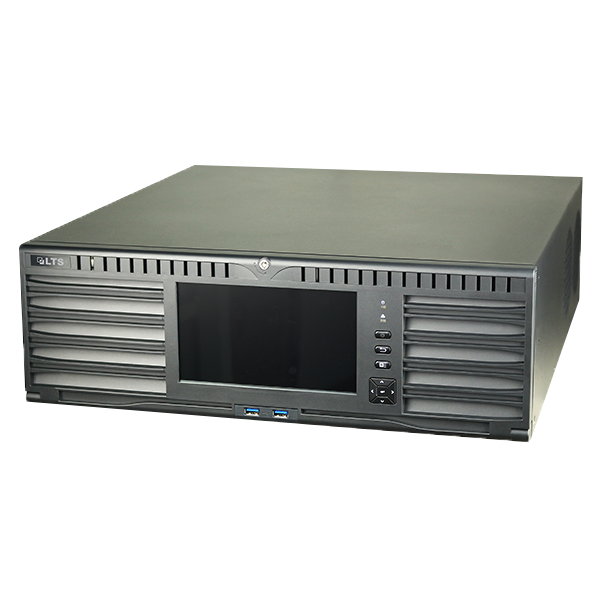

Platinum Enterprise Level 256 Channel NVR 3U

$8,299.00 USD
$8,299.00 USD
Sale Sold out
  • 256 Channel Network Video Recorder
  • Support Live View, Recording, Playback up to 12MP
  • Quad-Core CPU
  • Supports 16 SATA up to 10TB each
  • 4 RJ45 10/100/1000Mbps Ethernet Interfaces
  • RAID0, RAID1, RAID5, RAID 6, and RAID10 Hot Swap
  • H.265/H.265+/H.264/H.264+
Recorder Series Platinum Series
Recorder Channel Others
Recorder Case 3U Case
Recorder Technology IP / NVR
Featured Product No
Video No
Specifications
Video/Audio Input
IP Video Input 256-CH
Two-Way audio Input 1-ch, RCA (2.0 Vp-p, 1kΩ)
Network
Incoming Bandwidth 768Mbps/ 768Mbps
Outgoing Bandwidth 768Mbps/768Mbps
Remote Connection 256
Video/Audio Output
Recording Resolution 8MP/6MP/5MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF
HDMI1/VGA1 Output Resolution

Two independent HDMI outputs of 4K resolution. Resolution: 4K (4096×2160), 4K(3840×2160)/30Hz,
2K (2560×1440)/60Hz, 1080p (1920×1080)/60Hz, UXGA (1600×1200)/60Hz, SXGA (1280×1024)/
60Hz, 720p (1280×720)/60Hz, XGA (1024×768)/60Hz

1-ch. Resolution: 1080p (1920×1080) /60Hz, UXGA (1600×1200) /60Hz, SXGA (1280×1024) /60Hz,
720p (1280×720) /60Hz, XGA (1024×768 ) /60Hz
HDMI2 Output 1-ch,1920 × 1080P /60Hz, 1600 × 1200 /60Hz, 1280 × 1024 /60Hz, 1280 × 720 /60Hz, 1024 × 768/60Hz
HDMI outputs (on HDMI Output Extension Board) 1-ch,1920 × 1080P /60Hz, 1600 × 1200 /60Hz, 1280 × 1024 /60Hz, 1280 × 720 /60Hz, 1024 × 768/60Hz
Audio Output 1-ch, RCA (Linear, 1kΩ)
Decoding
Live View/Playback Resolution H.264, MPEG4, M-JPEG
Synchronous Playback 16-CH
Capability 22-ch@1080P
Hard Disk
SATA 16 SATA interfaces supporting hot-plug
Capacity Up to 10TB Capacity for Each HDD
Disk Array
Array Type RAID0, RAID1, RAID5, RAID 6, and RAID10
Number of Array 16
Interface
Network Interface 4, RJ45 10M/100M/1000M self-adaptive Ethernet interface
Optic Fiber Interface 4, 1000 Mbps Optic Fiber Interface
Serial Interface 1 RS-485,Keyboard
USB Interface Front Panel: 2 × USB 2.0; Rear Panel: 2 × USB 3.0
Alarm In/Out 16/8
General
Power Supply 100 ~ 240 VAC, 550W
Consumption ≤ 140 W(without hard disk or DVD-R/W)
Working Temperature 14ºF ~ 131ºF(-10 ºC ~ +55 ºC)
Working Humidity 10% ~ 90%
Casing 19-Inch Rack-Mounted 3U Chassis
Dimensions (WxDxH) 17.4" ×19.4"×5.7"(442× 494 ×146 mm)
Weight ≤ 35.3 lb (16Kg, without hard disk or DVD-R/W)
