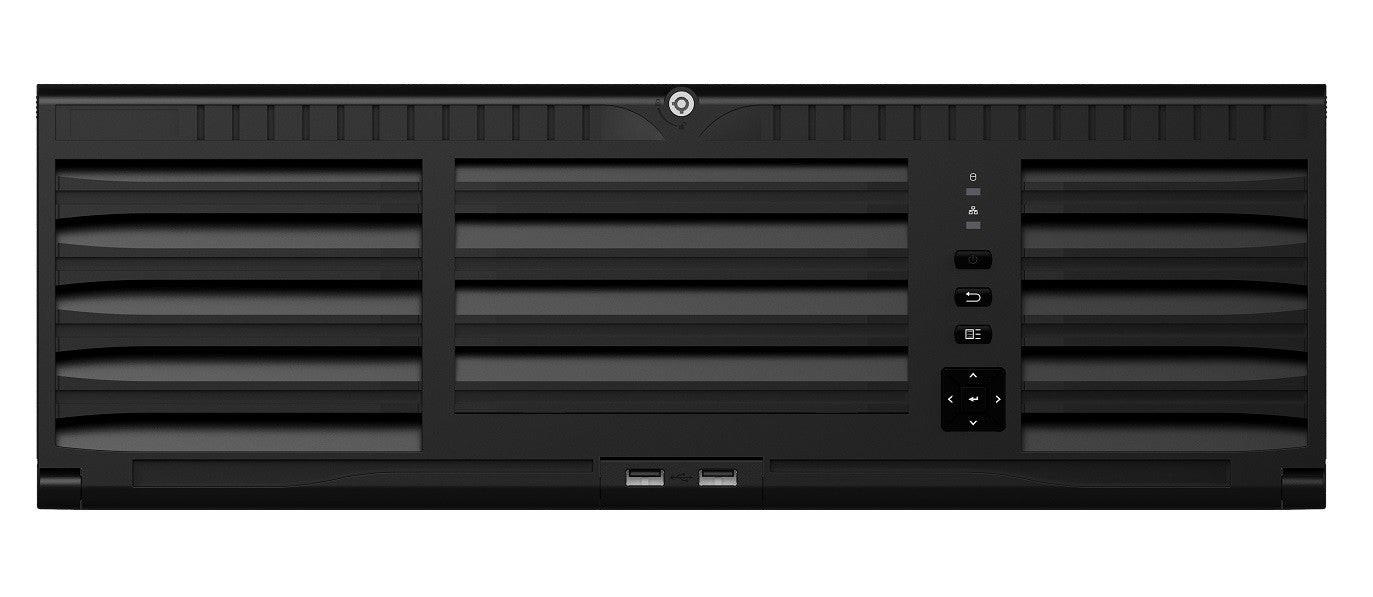

Platinum Enterprise Level 128 Channel NVR – 4K

$5,299.00 USD
$5,299.00 USD
Sale Sold out
  • 128-Channel Network Video Recorder
  • Supports Live View, Recording, and Playback up to 12MP IP Camera
  • Quad-Core CPU
  • 576Mbps Bandwidth
  • 4K (3840x2160) HDMI Video Output
  • Supports 16 SATA up to 10 TB each
  • 4 RJ45 10/100/1000Mbps, 4 Fiber Optic Ethernet Interfaces
  • RAID 0, 1, 5, 6, 10, and Hot Swap
  • H.265/H.265+/H.264/H.264+
  • 20 CH @ 1080P
  • Supports Up to 10 TB for each HDD
Recorder Series Platinum Series
Recorder Channel 128-Channel
Recorder Case 3U Case
Recorder Technology IP / NVR
Featured Product No
Video No
Specifications
Video/Audio Input
IP Video Input 128CH
Incoming/Outgoing Bandwidth 576Mbps/512Mbps
Incoming/Outgoing Bandwidth (RAID mode) 576Mbps/512Mbps
Protocol LTS, ACTi, ARECONT, AXIS, BOSCH, BRICKCOM, CANON, HUNT, ONVIF (Version 2.5), PANASONIC, PELCO, PSIA, RTSP, SAMSUNG, SONY, VIVOTEK, ZAVIO, HIKVISION
Video/Audio Output
HDMI Output Two independent HDMI outputs of 4K resolution. Resolution: 4K (4096×2160), 4K (3840×2160)/30Hz, 2K (2560×1440)/60Hz, 1080P (1920×1080)/60Hz, UXGA (1600×1200)/60Hz, SXGA (1280×1024)/ 60Hz, 720P (1280×720)/60Hz, XGA (1024×768)/60Hz
VGA Output 1CH Resolution: 1080P (1920×1080) /60Hz, UXGA (1600×1200) /60Hz, SXGA (1280×1024) /60Hz, 720P (1280×720) /60Hz, XGA (1024×768) /60Hz
Audio Output  1CH, RCA (Linear, 1kΩ)
Video & Audio Decoding
Decoding Format H.265, H.265+, H.264, H.264 Zip+, MPEG4, MJPEG
Video Resolution

12MP/8MP/7MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous Playback Up to 16 channels
Capability 20CH @ 1080P
Hard Disk
SATA 16 SATA interfaces supporting hot-plug
Capacity Up to 10TB capacity for each HDD
RAID
RAID Type RAID 0, 1, 5, 6, and 10
Network Management
Protocol IPv6, HTTPS, UPnP, SNMP, NTP, SADP, SMTP, NFS, iSCSI, PPPoE, DDNS
Network Interface 4, RJ45 10M/100M/1000M self-adaptive Ethernet interface
External Interface
Two-way Audio Input 1-ch, RCA (2.0 Vp-p, 1 KΩ)
Serial Port 1 RS-485,Keyboard
USB Interface Front Panel: 2 × USB 2.0; Rear Panel: 2 × USB 3.0
Alarm Input/Output 16/8
Decoding Board 1
General
Power Supply 100 ~ 240 VAC, 550W
Consumption ≤ 140 W(without hard disk or DVD-R/W)
Working Temperature 32 °F to 122 °F (0°C to + 50°C)
Working Humidity 10 % ~ 90 %
Casing 19-inch rack-mounted 3U chassis
Dimensions (WxDxH) 17.4" ×19.4"×5.7"(442× 494 ×146 mm)
Weight ≤ 35.3 lb (16Kg, without hard disk or DVD-R/W)
