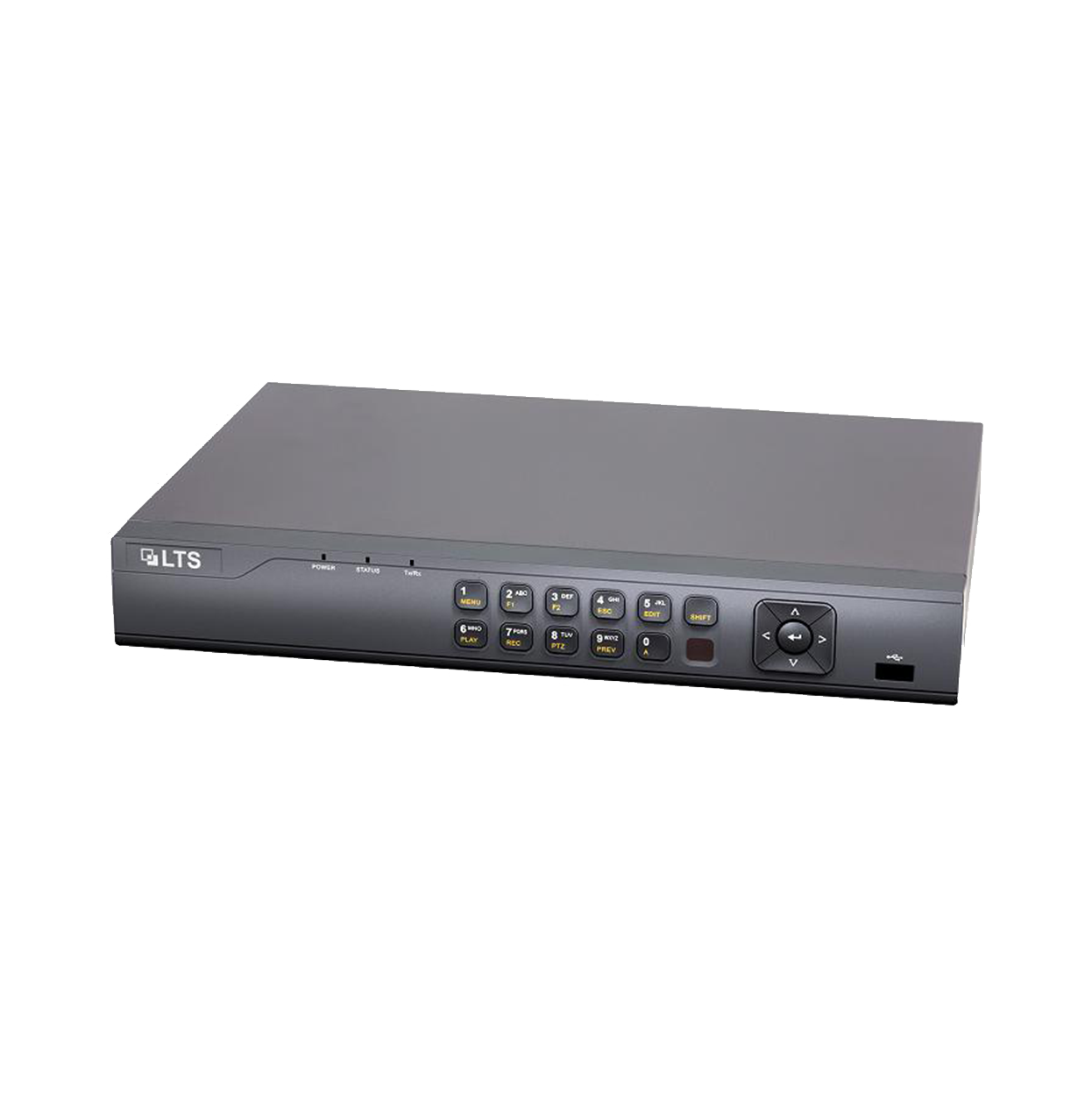

Platinum Advanced Level 4 Channel HD-TVI DVR

$109.00 USD
$109.00 USD
Sale Sold out
  • H.265 Pro+/H.265 Pro/H.265 video compression
  • HDTVI/AHD/CVI/CVBS/IP video input
  • Up to 6ch IP camera inputs (up to 6MP)
  • Up to 10 TB capacity per HDD
Recorder Series TurboHD
Recorder Channel 4-Channel
Recorder Case Compact Case
Recorder Technology DVR
Featured Product No
Video No
Specifications
Motion Detection 2.0¹
Human/Vehicle Analysis Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported;
Perimeter Protection¹
Human/Vehicle Analysis Up to 2-ch
Facial Detection¹
Facial detection and capture 1-ch human face capture (HD analog camera)
Recording
Video compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding resolution Main stream:
When 1080p lite mode not enabled:
For 4 MP stream access: 4 MP lite@15 fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15 fps
For 1080p stream access: 1080p/720p@15 fps; VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)
For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)

When 1080p Lite mode enabled:
4 MP lite/3 MP@15 fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)

Sub-stream: WD1/4CIF@12 fps; CIF@25 fps (P)/30 fps (N)
Video bitrate 32 Kbps to 6 Mbps
Dual stream Support
Stream type Video, Video & Audio
Audio compression G.711u
Audio bitrate 64 Kbps
Video and Audio
IP video input 1-ch (up to 5-ch)

Enhanced IP mode on: 2-ch (up to 6-ch), each up to 4 Mbps

Up to 6 MP resolution
Support H.265+/H.265/H.264+/H.264 IP cameras
Analog video input 4-ch
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDTVI input 4 MP, 3 MP, 1080p30, 1080p@25 fps, 720p@60 fps, 720p@50 fps, 720p@30 fps, 720p@25 fps
The 3 MP signal input is only available for channel 1 of LTD8304M-ET, for channel 1/2 of LTD8308M-ETC
AHD input 4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
HDCVI input 4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
CVBS input PAL/NTSC
CVBS output 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
HDMI/VGA output 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz, HDMI/VGA simultaneous output
Audio input 1-ch, RCA (2.0 Vp-p, 1 KΩ)
4-ch via coaxial cable
Audio output 1-ch, RCA (Linear, 1 KΩ)
Two-way audio 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
Synchronous playback 4-ch
Network
Remote connection 32
Network protocol TCP/IP, PPPoE, DHCP, LTS-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Network interface 1, RJ45 10/100 Mbps self-adaptive Ethernet interface
Wi-Fi Connectable to Wi-Fi network by Wi-Fi dongle through USB interface
Auxiliary interface
SATA 1 SATA interface, up to 10 TB capacity for each disk
Serial interface RS-485 (half-duplex)
USB interface Front panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0
Alarm in/out N/A
General
Power supply 12 VDC, 1.5 A
Consumption (without HDD) ≤ 18 W
Working temperature -10 °C to 55 °C (14 °F to 131 °F)
Working humidity 10% to 90%
Dimension (W × D × H) 315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch)
Weight (without HDD) ≤ 1.16 kg (2.6 lb)
