ufp-dmj

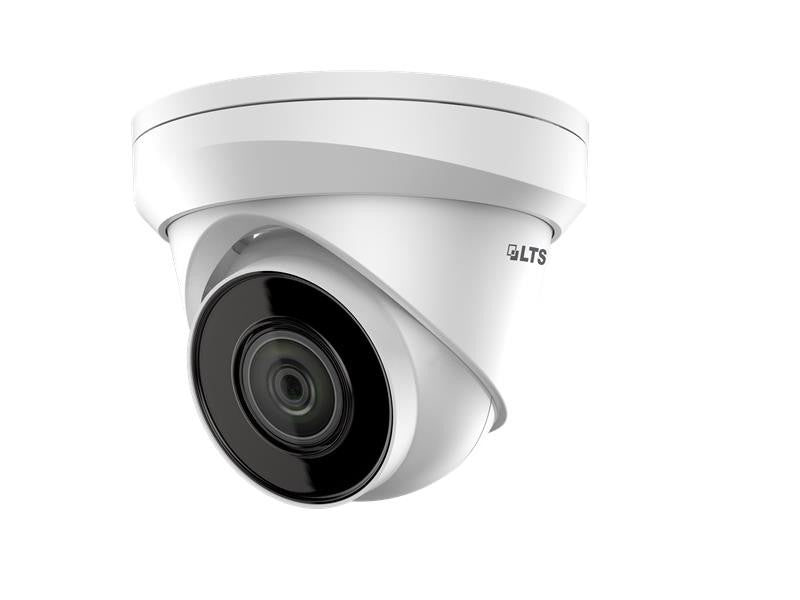

8MP IR Fixed Turret Network Camera-2.8mm

$199.00 USD
$199.00 USD
Sale Sold out
  • High quality imaging with 4K resolution
  • Efficient H.265+ compression technology
  • Clear imaging even with strong back lighting due to 120dB WDR
  • Water and dust resistant (IP67)
  • Matrix IR 2.0: advanced infrared technology with long IR range
  • LTS-Connect cloud service and APP for remote management and views of devices
  • Built-in microphone for real-time audio security
  • Support up to 256 GB SD card storage
Camera Series Platinum Series
Camera Resolution 8MP
Camera Technology IP / Network
Camera Housing Turret
Featured Product No
Specifications
Camera
Image Sensor 1/2.5" Progressive Scan CMOS
Min. Illumination 0.01 Lux @ (F2.0, AGC ON)
Shutter Speed 1/3 s to 1/100,000 s
Slow Shutter Yes
Wide Dynamic Range 120 dB
Day & Night ICR Cut
Angle Adjustment Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
Lens
Lens Type & FOV 2.8 mm, horizontal FOV 102°, vertical FOV 53°, diagonal FOV 123°
Aperture F2.0
Lens Mount M12
Illuminator
IR Range Up to 98ft(30 m)
Wavelength 850 nm
Smart Supplement Light Yes
Video
Max. Resolution 3840 × 2160
Main Stream 50Hz: 12.5 fps (3840 × 2160, 2560 × 1440, 1920 × 1080, 1280 × 720) 60Hz: 15 fps (3840 × 2160, 2592 × 1944, 1920 × 1080, 1280 × 720)
Sub Stream 50Hz: 25 fps (640 × 480, 640 × 360) 60Hz: 30 fps (640 × 480, 640 × 360)
Video Compression Main stream: H.265+/H.265 Sub-stream: H.265/MJPEG
Video Bit Rate 32 Kbps to 16 Mbps
H.265 Type Main Profile
H.265+ Main stream supports
Bit Rate Control CBR/VBR
Scalable Video Coding (SVC) H.265 supports
Region of Interest (ROI) 1 fixed region for main stream and sub-stream
Audio
Environment Noise Filtering Yes
Audio Sampling Rate 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
Audio Bit Rate 64 Kbps(G.711 ulaw)/64 Kbps(G.711 alaw)/16 Kbps(G.722.1)/16 Kbps(G.726)/32-192 Kbps(MP2L2)/16-64Kbps(AAC)/8-320Kbps(MP3)
Network
Simultaneous Live View Up to 6 channels
API Open Network Video Interface (PROFILE S, PROFILE G), ISAPI, SDK, ISUP
Protocols TCP/IP, ICMP, DHCP, DNS, DDNS, HTTP, HTTPS, RTP, RTSP, NTP, UPnP, IGMP, IPv6, UDP, QoS, Bonjour, FTP, SMTP, 802.1x, SSL/TLS, PPPoE
User/Host Up to 32 users 3 levels: Administrator, Operator and User
Network Storage Supports microSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Web Browser Plug-in required live view: IE 10, IE 11 Local service: Chrome 57.0+, Firefox 52.0+
Day/Night Switch Day, Night, Auto, Schedule
Image Enhancement BLC, HLC, 3D DNR
Image Settings Mirror, saturation, brightness, contrast, sharpness, AGC, and white balance adjustable by client software or web browser
Privacy Mask 4 regions of privacy masks
Interface
Built-in Microphone Yes
On-board Storage Built-in micro SD/SDHC/SDXC slot, up to 256 GB
Hardware Reset Yes
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
Smart Feature-Set
Basic Event Motion detection, video tampering, exception
General
Linkage Method Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture
Web Client Language 33 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General Function Anti-flicker, password protection, password reset via email
Software Reset Yes
Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Power Supply 12 VDC ± 25% PoE: 802.3af, Type 1 Class 3
Power Consumption and Current 12 VDC, 0.4 A, max. 5 W PoE (802.3af, 36 V to 57 V), 0.20 A to 0.1 A, max. 6.5 W
Power Interface Ø 5.5 mm coaxial power plug
Camera Material Aluminum alloy body
Camera Dimension Ø 110 × 81.25 mm (Ø 4.33" × 3.20")
Package Dimension 150 × 150 × 141 mm (5.9" × 5.9" × 5.6")
Camera Weight Approx. 390 g (0.9 lb.)
With Package Weight Approx. 656 g (1.4 lb.)
Video No
