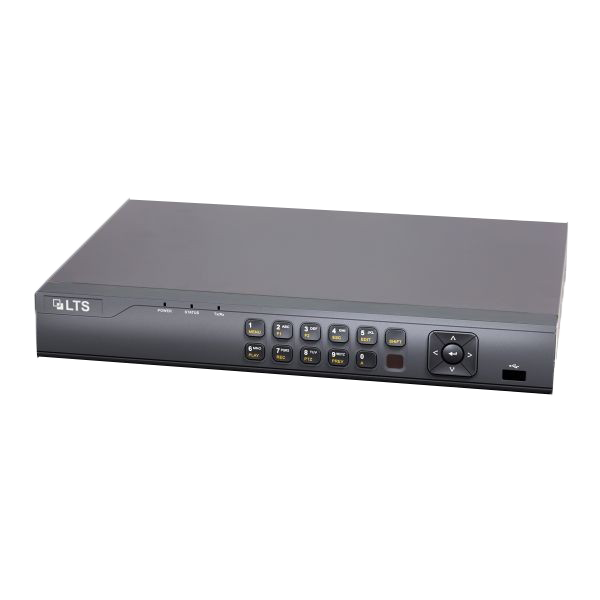

8 Channel NVR-P8

$379.00 USD
$379.00 USD
Sale Sold out

8CH Professional NVR

Platinum, NVR-P, 8CH, 80Mbps, 8xPoE, 4K, 1U case, Supports 2 SATA up to 6TB each

  • Professional and Reliability
  • H.265+ compression effectively reduces the storage space by up to 75%
  • HD Video Output
  • Provide simultaneous HDMI and VGA outputs
  • HDMI video output at up to 4K resolution
  • Storage and Playback
  • Supports 2 SATA up to 6TB each
  • Smart search/smart playback to improve the playback efficiency
  • Smart Function
  • Support multiple VCA (Video Content Analytics) events
  • Configurable special camera smart functions, such as VCA detection (motion, line crossing, intrusion, etc.), heat map, ANPR, and people counting
  • Network & Ethernet Access
  • 8 independent PoE network interfaces
  • 1 self-adaptive 10/100 Mbps Ethernet interface
  • LTS-Connect & DDNS (Dynamic Domain Name System) for easy network management
Recorder Series Platinum Series
Recorder Channel 8-Channel
Recorder Case 1U Case
Recorder Technology Hybrid NVR
Featured Product No
Video No
Specifications

Untitled Document

Video and Audio
IP Video Input 8-ch
Up to 8 MP resolution
Incoming Bandwidth 80 Mbps
Outgoing Bandwidth 80 Mbps
HDMI Output 1-ch, 4K (4096 x 2160)/30 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz
VGA Output 1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
Video Output Mode HDMI/VGA simultaneous output
CVBS Output N/A
Audio Output 1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio Input 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
Decoding
Decoding Format H.265+/H.265/H.264+/H.264
Recording Resolution 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/2CIF/CIF/QCIF
Synchronous Playback 8-ch
Capability 1-ch@8 MP (30 fps)/5-ch@1080p (30 fps)
Stream Type Video, Video & Audio
Audio Compression G.711ulaw/G.711alaw/G.722/G.726
Network
Remote Connection 64
Network Protocol TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
Network Interface 1, RJ-45 10/100 Mbps self-adaptive Ethernet interface
PoE
Interface 8, RJ-45 10/100 Mbps self-adaptive Ethernet interface
Power ≤ 80 W
Supported Standard IEEE 802.3 af/at
Auxiliary Interface
SATA 2 SATA interfaces
Capacity Up to 6 TB capacity for each disk
USB Interface Front panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0
General
Power Supply 48 VDC, 2.5 A
Consumption (witdout HDD and PoE off) ≤ 15 W
Working Temperature -10 °C to 55 °C (14 °F to 131 °F)
Working Humidity 10% to 90%
Dimension (W × D × H) 385 × 315 × 52 mm (15.2"× 12.4" × 2.0")
Weight (without HDD) ≤ 2.6 kg (5.7 lb)
