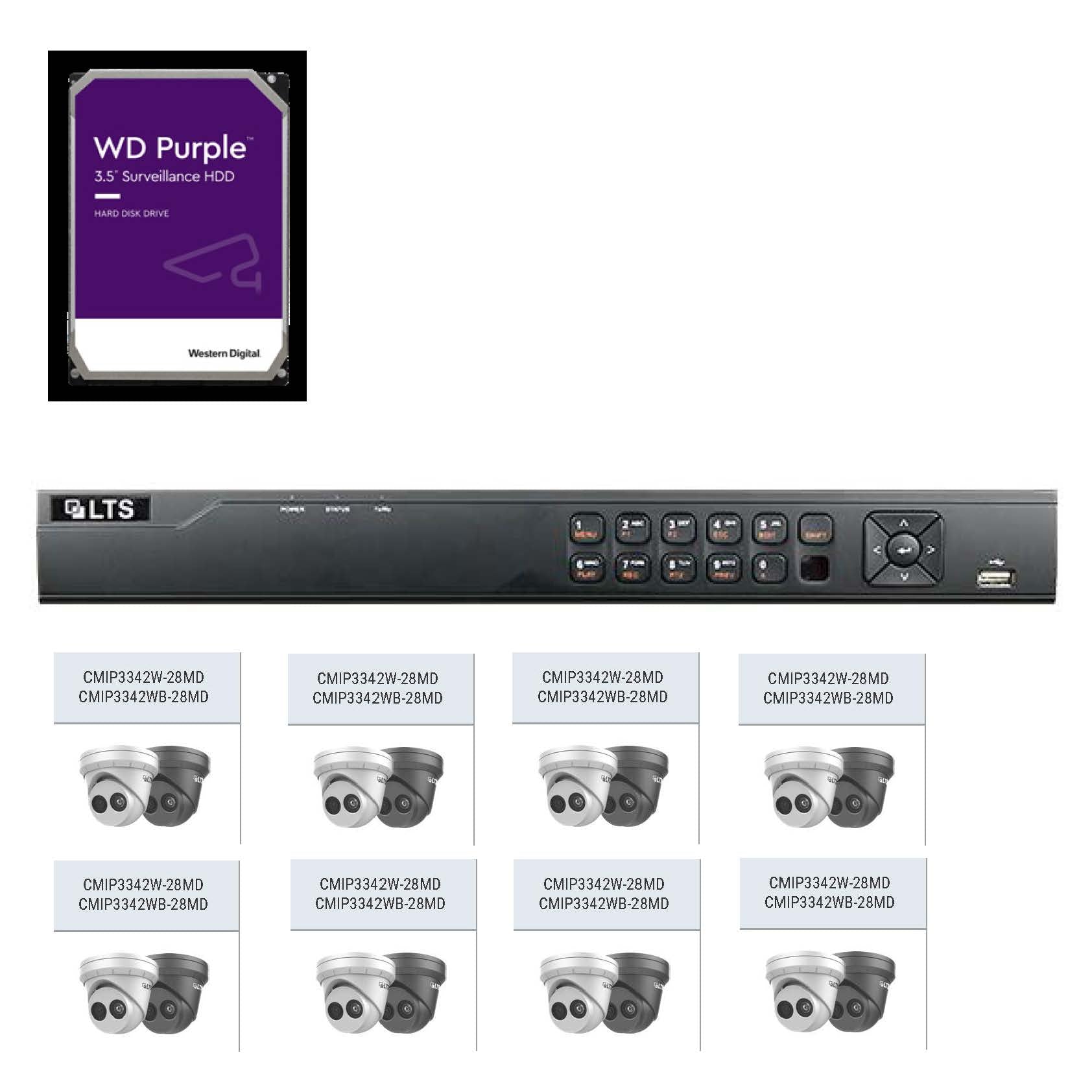

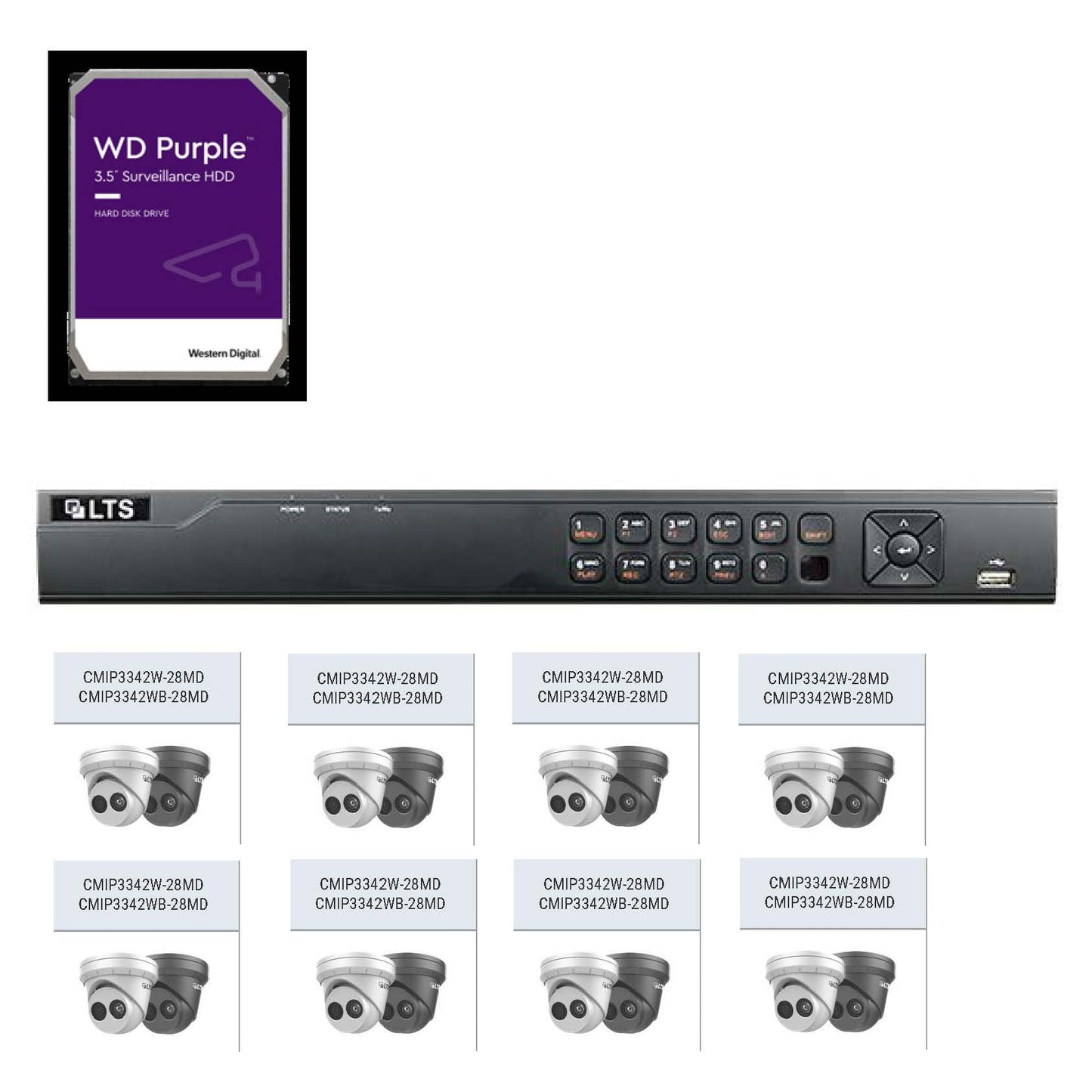

8 Channel built in PoE with 8 Ip cameras and 4TB hard drive

$1,899.00 USD
$1,899.00 USD
Sale Sold out
Color
  • 8 Channel Network Video Recorder
  • Support Live View, Storage, Playback up to 4K(8MP) IP Camera
  • 80MB Bandwidth
  • 8 Built-in PoE
  • 4K (3840x2160) HDMI Video Output
  • 2 SATA up to 6TB each HDD
  • H.264/H.264 Zip+
  • 8-4MP Fixed Lens Turrets (W/B)
  • 4 TB hard drive
  • Professional and Reliability
  • H.265+ compression effectively reduces the storage space by up to 75%
  • HD Video Output
  • Provide simultaneous HDMI and VGA outputs
  • HDMI video output at up to 4K resolution
  • Storage and Playback
  • Supports 2 SATA up to 6TB each
  • Smart search/smart playback to improve the playback efficiency
  • Smart Function
  • Support multiple VCA (Video Content Analytics) events
  • Configurable special camera smart functions, such as VCA detection (motion, line crossing, intrusion, etc.), heat map, ANPR, and people counting
  • Network & Ethernet Access
  • 8 independent PoE network interfaces
  • 1 self-adaptive 10/100 Mbps Ethernet interface
  • LTS-Connect & DDNS (Dynamic Domain Name System) for easy network management



Recorder Series Platinum Series
Recorder Channel 8-Channel
Recorder Case 1U Case
Recorder Technology Hybrid NVR
Featured Product No
Video No
Specifications

Untitled Document

Video and Audio
IP Video Input 8-ch
Up to 8 MP resolution
Incoming Bandwidth 80 Mbps
Outgoing Bandwidth 80 Mbps
HDMI Output 1-ch, 4K (4096 x 2160)/30 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz
VGA Output 1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
Video Output Mode HDMI/VGA simultaneous output
CVBS Output N/A
Audio Output 1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio Input 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
Decoding
Decoding Format H.265+/H.265/H.264+/H.264
Recording Resolution 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/2CIF/CIF/QCIF
Synchronous Playback 8-ch
Capability 1-ch@8 MP (30 fps)/5-ch@1080p (30 fps)
Stream Type Video, Video & Audio
Audio Compression G.711ulaw/G.711alaw/G.722/G.726
Network
Remote Connection 64
Network Protocol TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
Network Interface 1, RJ-45 10/100 Mbps self-adaptive Ethernet interface
PoE
Interface 8, RJ-45 10/100 Mbps self-adaptive Ethernet interface
Power ≤ 80 W
Supported Standard IEEE 802.3 af/at
Auxiliary Interface
SATA 2 SATA interfaces
Capacity Up to 6 TB capacity for each disk
USB Interface Front panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0
General
Power Supply 48 VDC, 2.5 A
Consumption (witdout HDD and PoE off) ≤ 15 W
Working Temperature -10 °C to 55 °C (14 °F to 131 °F)
Working Humidity 10% to 90%
Dimension (W × D × H) 385 × 315 × 52 mm (15.2"× 12.4" × 2.0")
Weight (without HDD) ≤ 2.6 kg (5.7 lb)
Video No

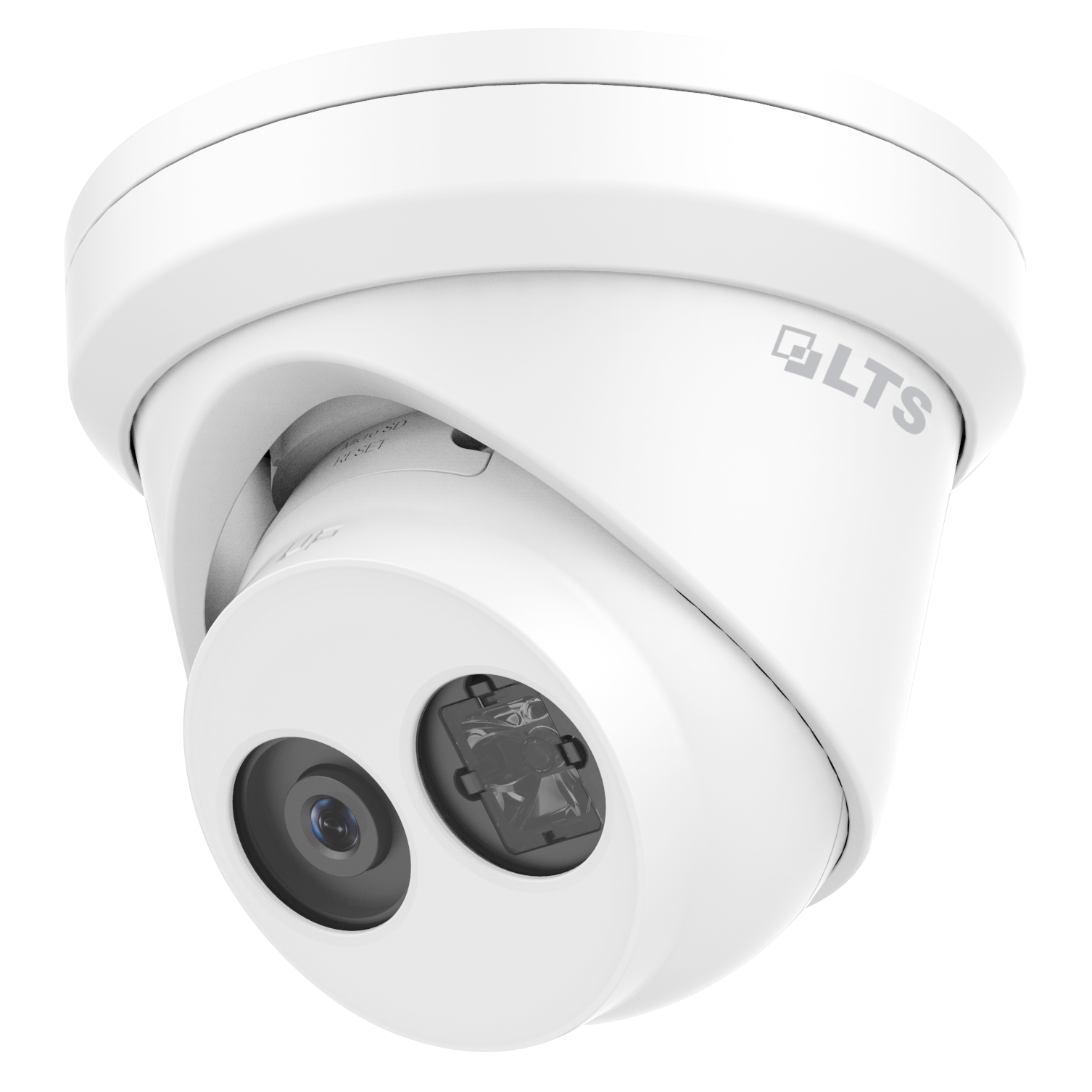

Camera Series Platinum Series
Camera Resolution 4MP
Camera Technology IP / Network
Camera Housing Turret
Featured Product No
Specifications
Camera
Image Sensor 1/3" Progressive Scan CMOS
Min. Illumination 0.028 Lux @ (F2.0, AGC ON), 0 Lux with IR
Shutter Speed 1/3 s to 1/10,000 s
Lens 2.8mm, horizontal FOV:98°, vertical FOV: 55°, diagonal FOV: 114°
Lens Mount M12
Day & Night IR cut filter with auto switch
DNR 3D DNR
Wide Dynamic Range True WDR 120dB
Angle Adjustment Pan:0° ~ 360°, Tilt: 0° ~ 75°, Rotation: 0° ~ 360°
Compression Standard
Video Compression

Main stream: H.265/ H.264
Sub stream: H.265/H.264/ MJPEG
Third stream: H.265/ H.264
H.264 / H.264+ Type Main Profile / High Profile / Main Stream and Sub Stream Support
H.265 / H.265+ Type Main Profile / Main stream and sub stream support
Video Bit Rate 32 Kbps ~ 16 Mbps
Dual Stream Support
Max. Resolution 2560 × 1440
Main Stream 50Hz:25fps (2560×1440,2304×1296,1920×1080) 60Hz: 30fps (2560×1440,2304×1296,1920×1080)
Sub Stream 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Third Stream 50Hz: 25fps (1280×720, 640×360, 352×288) 60Hz: 30fps (1280×720, 640×360, 352×240)
Behavioral Analysis Line crossing detection, intrusion detection
Network
Network Storage Support microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger Motion Detection, Tampering Alarm, Intrusion Detection, Line Crossing Detection, HDD Full, HDD Error, Network Disconnected, IP Address Conflicted
Protocols TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
General One-key Reset, Anti-Flicker, Heartbeat, Mirror, Password Protection, Privacy Mask, Watermark, IP Address Filter
Standard ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI
Interface
Communication Interface 1 RJ45 10M/100M Ethernet port
Reset Yes
General
Working Temperature
/Humidity 		 -22 °F ~ 140 °F (-30 °C ~ 60 °C)
Humidity 95% or less (non-condensing)
Power Supply DC12V ± 25%,
Power Consumption 12 VDC, 0.5A, Max. 6W
IR Range Up to 100ft
Weather Proof Ratings IP67
Dimensions 5.01″ × 3.78″ (Φ 127.3 × 95.9 mm)
Weight 1.3 lb. (610g)

Materials
