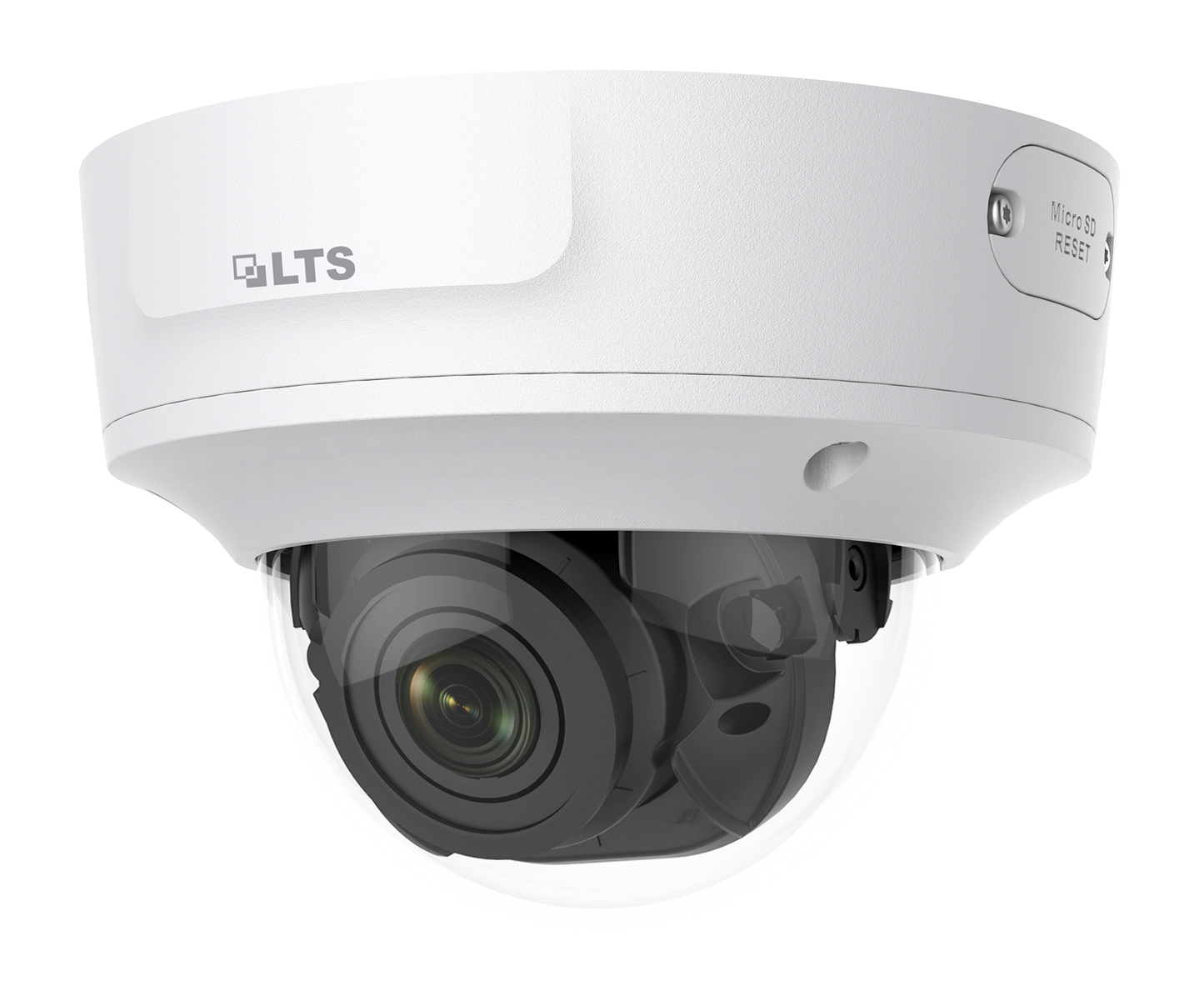

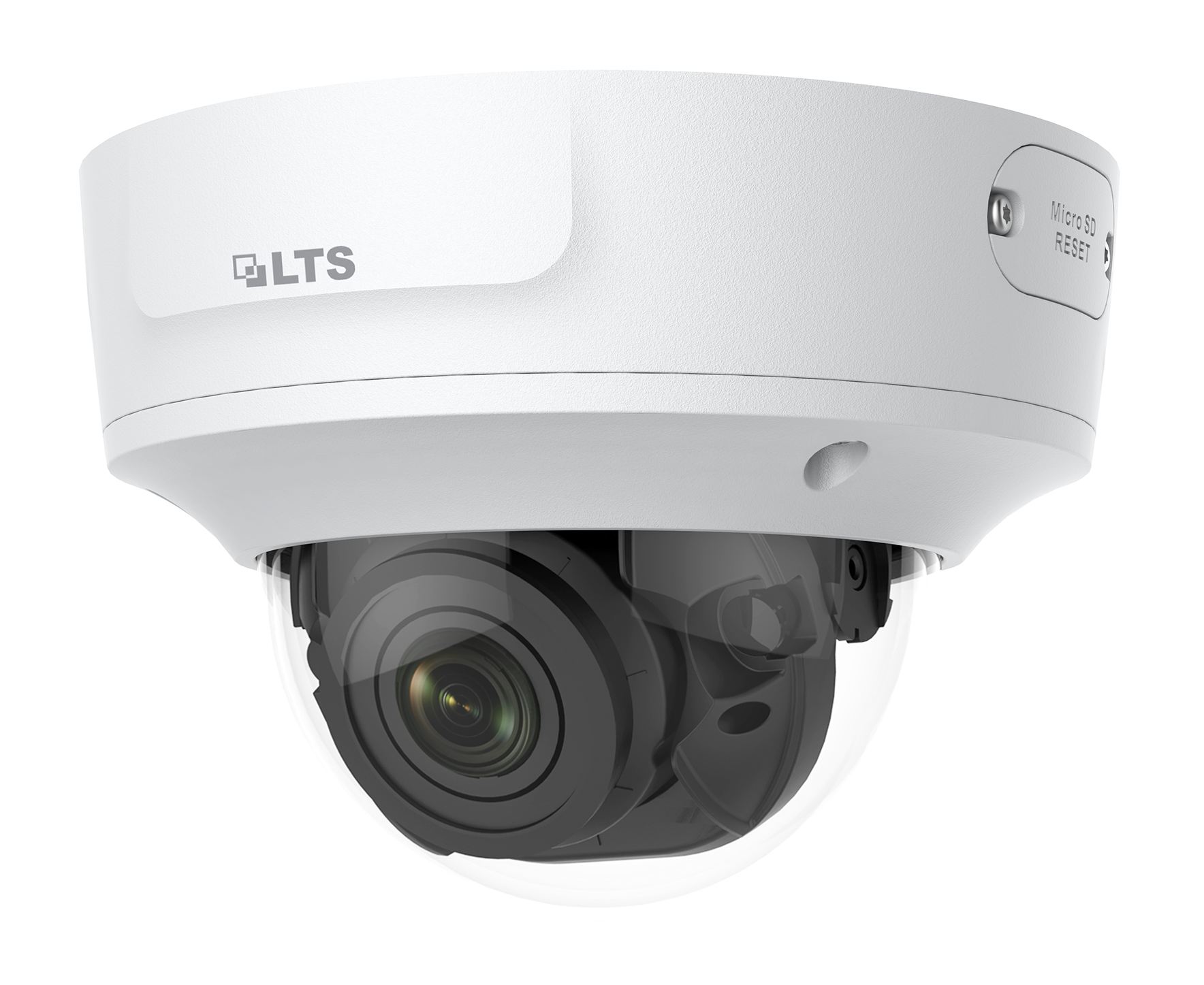

6 MP IR Varifocal Dome Network Camera

$359.00 USD
$359.00 USD
Sale Sold out
  • Junction Box Included
  • 1/2.9" Progressive Scan CMOS
  • 3072 × 2048@20 fps
  • 2.8 to 12 mm varifocal lens
  • Color: 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR
  • H.265+, H.265, H.264+, H.264
  • 120dB WDR
  • BLC/3D DNR/ROI/HLC
  • IP67, IK10
  • Built-in micro SD/SDHC/SDXC card slot up to 128 GB
Camera Series Platinum Series
Camera Resolution 6.0MP
Camera Technology IP / Network
Camera Housing Dome
Featured Product No
Specifications



Camera

Image Sensor

1/2.9" Progressive Scan CMOS

Min. Illumination

Color: 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR

Shutter Speed

1/3 s to 1/100,000 s

Slow Shutter

Yes

Auto-Iris

No

Day & Night

IR Cut Filter

Digital Noise Reduction

3D DNR

WDR

120dB

3-Axis Adjustment

Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°

Lens

Focal Length

2.8 to 12 mm

Lens Type

Motorized

Aperture

F1.6

Focus

Auto



FOV

Horizontal field of view: 88° to 27°

Vertical field of view: 56° to 18° Diagonal field of view: 110° to 33°

Lens Mount

Φ14

IR



IR Range

Up to 98ft(30 m)

Wavelength

850nm

Compression Standard





Video Compression

Main stream: H.265/H.264

Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264

H.264 Type

Main Profile/High Profile

H.264+

Main stream supports

H.265 Type

Main Profile

H.265+

Main stream supports

Video Bit Rate

32 Kbps to 16 Mbps

Smart Feature-set



Behavior Analysis

Line crossing detection, intrusion detection

Face Detection

Yes

Region of Interest

Support 1 fixed region for main stream and sub-stream


Max. Resolution

3072 × 2048



Main Stream

50Hz: 20 fps (3072 × 2048, 3072 × 1728, 2944 × 1656), 25 fps (2560 × 1440, 1920 × 1080, 1280 ×

720)

60Hz: 20 fps (3072 × 2048, 3072 × 1728, 2944 × 1656), 30 fps (2560 × 1440, 1920 × 1080, 1280 ×

720)



Sub-Stream

50Hz: 25 fps (640 × 480, 640 × 360, 320 × 240)

60Hz: 30 fps (640 × 480, 640 × 360, 320 × 240)



Third Stream

50Hz: 25 fps (1280 × 720, 640 × 360, 352 × 288)

60Hz: 30 fps (1280 × 720, 640 × 360, 352 × 240)



Image Enhancement

BLC/3D DNR/HLC

Image Settings

Saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser

Target Cropping

No

Day/Night Switch

Day/Night/Auto/Schedule/Triggered by Alarm In

* Note: When the main stream resolution is 2944 × 1656 and above, max frame rate is 20 fps for all streams.

Network

Network Storage

Support Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR

Alarm Trigger

Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour

General Function

One-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter

API

ONVIF (PROFILE S, PROFILE G), ISAPI

Simultaneous Live View

Up to 6 channels



User/Host

Up to 32 users

3 levels: Administrator, Operator and User



Web Browser

Plug-in required live view: IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11 Plug-in free live view: Chrome 45.0+, Firefox 52.0+

Interface



Audio

1 input (line in), 1 output (line out), mono sound, terminal block

Alarm)

1 input, 1 output (max. 12 VDC, 30 mA), terminal block

Communication Interface

1 RJ45 10M/100M self-adaptive Ethernet port

Video Output

1Vp-p composite output (75 Ω) (For adjustment only)

On-board storage

Built-in Micro SD/SDHC/SDXC slot, up to 128 GB

SVC

H.264 and H.265 encoding support

Reset Button

Yes

Audio



Environment Noise Filtering

Yes

Audio Sampling Rate

8kHz/16kHz/32kHz/44.1kHZ/48kHz

Audio Compression

G.711/G.722.1/G.726/MP2L2/PCM

Audio Bit Rate

64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)

General

Operating Conditions

-30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)



Power Supply

12 VDC ± 25%, PoE (802.3af)

Terminal block for DC input

Power Consumption and Current

12 VDC, 0.8A, max. 10W

PoE (802.3af, 36V to 57V), 0.4A to 0.2A, max. 12W

Protection Level

IP67, IK10

Material

Metal

Dimensions

Camera: Φ 153.3 × 111.6mm (Φ 6" × 4.4")



Weight

Camera: Approx. 835g (1.8 lb.)

With Package: Approx. 1305g (2.9 lb.)
