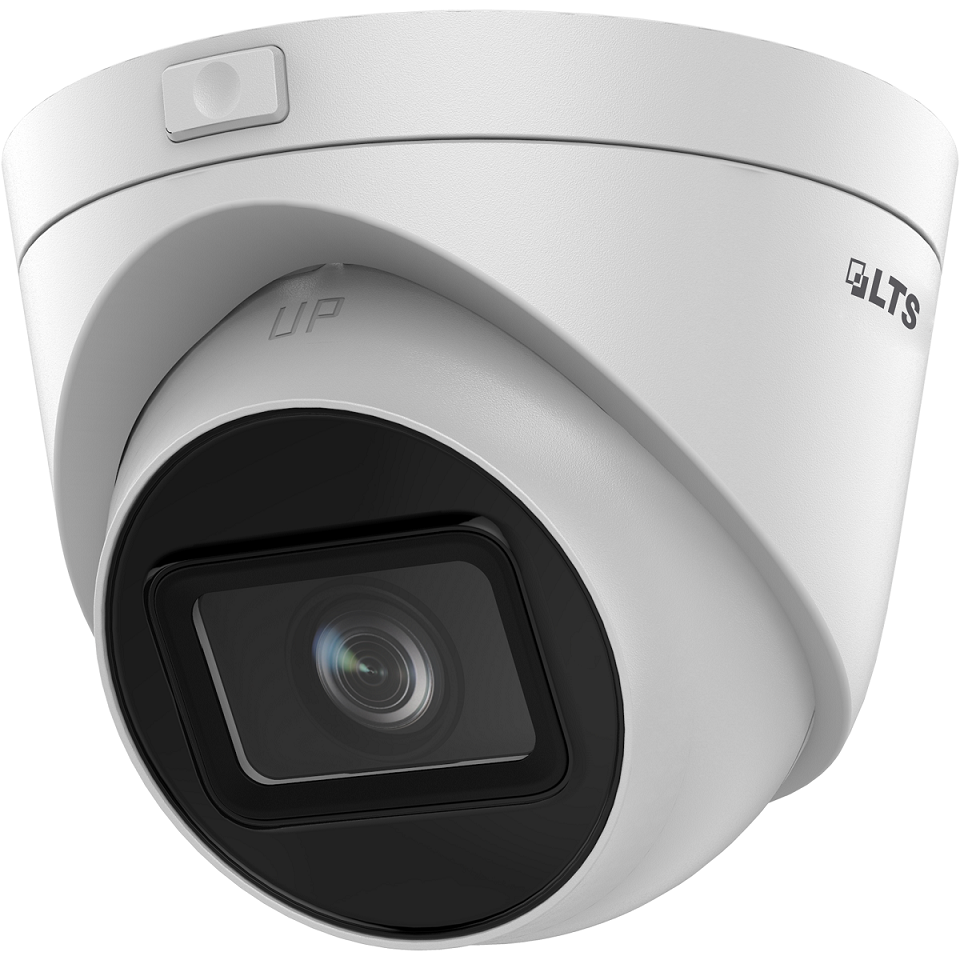

4MP Varifocal Turret Network Camera

$249.00 USD
$249.00 USD
Sale Sold out
  • High quality imaging with 4 MP resolution
  • Efficient H.265+ compression technology
  • Clear imaging even with strong back lighting due to 120 dB WDR
  • Up to 256 GB SD card slot for storage
  • 2.8 to 12 mm motorized varifocal lens for easy installation and monitoring
  • Water and dust resistant (IP67)
  • Matrix IR 2.0: advanced infrared technology with long IR range
Camera Series Platinum Series
Camera Resolution 4MP
Camera Technology IP / Network
Camera Housing Turret
Featured Product No
Specifications
Camera
Image Sensor 1/3" Progressive Scan CMOS
Max. Resolution 2560 × 1440
Min. Illumination Color: 0.005 Lux @(F1.6, AGC ON), B/W: 0 Lux with IR
Shutter Speed 1/3 s to 1/100,000 s
Wide Dynamic Range 120 dB
Day & Night IR Cut Filter
Angle Adjustment Pan: 0° to 355°, tilt: 0° to 70°, rotation: 0° to 355°
Lens
Lens Type Varifocal Lens, motoried lens, 2.8 to 12 mm
Focal Length & FOV 2.8 to 12 mm: horizontal FOV 102° to 31°, vertical FOV 54° to 17°, diagonal FOV 123° to 35°
Lens Mount Ø 14
Iris Type Fixed
Aperture F1.6
Illuminator
IR Wavelength 850 nm
IR Range Up to 98ft(30 m)
Video
Main Stream 50 Hz: 20 fps (2560 × 1440); 25 fps (2304 × 1296, 1920 × 1080, 1280 × 720)
60 Hz: 20 fps (2560 × 1440); 30 fps (2304 × 1296, 1920 × 1080, 1280 × 720)
Sub-Stream 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Video Compression Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
Video Bit Rate 32 Kbps to 8 Mbps
H.264 Type Baseline Profile/Main Profile/High Profile
H.265 Type Main Profile
Region of Interest (ROI) 1 fixed region for main stream
Network
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
Simultaneous Live View Up to 6 channels
API Open Network Video Interface, ISAPI
User/Host Up to 32 users. 3 levels: administrator, operator and user
Web Browser Plug-in required live view: IE 10+
Plug-in free live view: Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+
Image Settings Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
Day/Night Switch Auto, Schedule, Day, Night
Image Enhancement BLC, 3D DNR
Interface
Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage Built-in memory card slot, support microSD card, up to 256 GB
Reset Key Yes
Event
Basic Event Motion detection, video tampering alarm, exception
Linkage Upload to FTP, notify surveillance center, send email, upload to memory card, trigger recording, trigger capture
General
Power 12 VDC ± 25%, 0.75 A, max. 9 W, Ø 5.5 mm coaxial power plug
PoE: 802.3af, Class 3, 36 V to 57 V, 0.27 A to 0.17 A, max. 10 W
Camera Material Metal
Camera Dimension Ø 129.4 mm × 116.4 mm (Ø 5.1" × 4.6")
Package Dimension 170 mm × 170 mm × 150 mm (6.7" × 6.7" × 5.9")
Camera Weight Approx. 560 g (1.2 lb.)
With Package Weight Approx. 850 g (1.9 lb.)
Storage Conditions -30 °C to 60 °C (22 °F to +140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions -30 °C to 60 °C (22 °F to +140 °F). Humidity 95% or less (non-condensing)
Language English
General Function Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
Approval
EMC FCC SDoC (47 CFR Part 15, Subpart B)
CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014)
RCM (AS/NZS CISPR 32: 2015)
IC VoC (ICES-003: Issue 6, 2016)
KC (KN 32: 2015, KN 35: 2015)
Safety UL (UL 60950-1)
CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014)
CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014)
BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
Environment CE-RoHS (2011/65/EU)
WEEE (2012/19/EU)
Reach (Regulation (EC) No 1907/2006)
Electrical Safety Protection IP67 (IEC 60529-2013)
Video No
