ufp-dmj

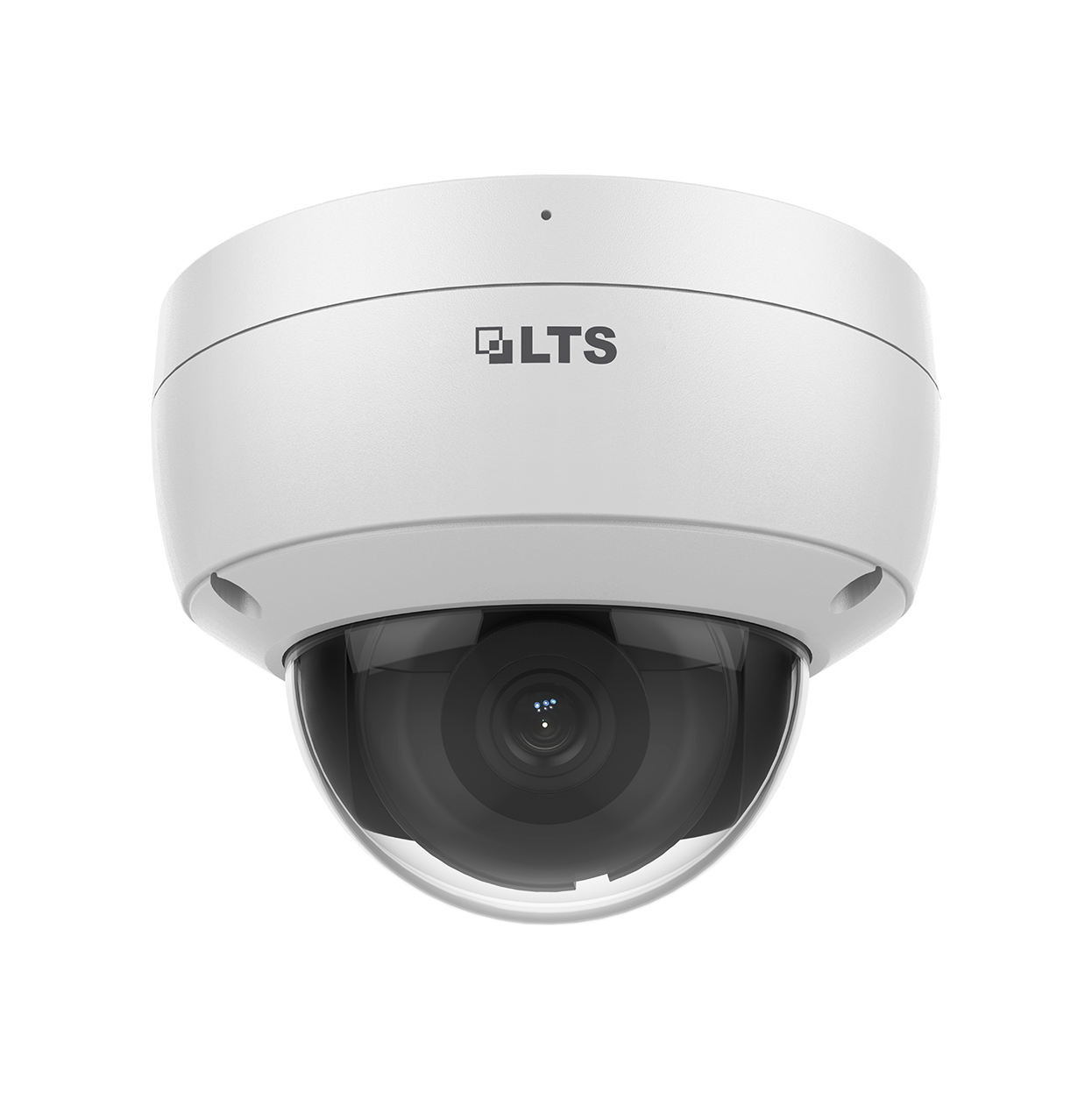

4MP Fixed Dome Network Camera

$129.00 USD
$129.00 USD
Sale Sold out
  • 4 MP Resolution
  • Efficient H.265+ compression technology
  • Clear imaging even with strong back lighting due to 120 dB WDR
  • Water and dust resistant (IP67) and vandal resistant (IK10)
  • Matrix 2.0: advanced infrared technology with long IR range
  • Support up to 256 GB SD card storage
  • Built-in microphone for real-time audio security
  • 2-axis Camera
Camera Series Platinum Series
Camera Resolution 4MP
Camera Technology IP / Network
Camera Housing Dome
Featured Product No
Specifications

Untitled Document

Camera
Image Sensor 1/3" progressive scan CMOS
Min. Illumination Color: 0.01 Lux @(F2.0, AGC ON), B/W: 0 Lux with IR
Shutter Speed 1/3 s to 1/100, 000 s
Slow Shutter Yes
Wide Dynamic Range 120 dB
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 355°, tilt: 0° to 75°
Lens
Focal Length & FOV 2.8 mm, horizontal FOV 98.0°, vertical FOV 53.1°, diagonal FOV 114.7°
Lens Mount M12
Focus Fixed
Aperture F2.0
Illuminator
IR Wavelength 850 nm
IR Range Up to 98ft(30 m)
Video
Max. Resolution 2560 × 1440
Main Stream 50 Hz: 20 fps (2560 × 1440) 25 fps (2304 × 1296, 1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 × 1440) 30 fps (2304 × 1296, 1920 × 1080, 1280 × 720)
Sub-Stream 50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360)
Video Compression Main stream: H.265/H.264 Sub-stream: H.265/H.264/MJPEG
Video Bit Rate 32 Kbps to 8 Mbps
H.264 Type Baseline Profile/Main Profile/High Profile
H.265 Type Main Profile
H.264+ Main stream supports
H.265+ Main stream supports
Region of Interest (ROI) 1 fixed region for main stream and sub-stream
Network
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP™, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
Simultaneous Live View Up to 6 channels
API Open Network Video Interface, ISAPI
User/Host Up to 32 users. 3 levels: administrator, operator and user
Network Storage NAS (NFS, SMB/CIFS), ANR
Web Browser Plug-in required live view: IE 10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+
Image Settings Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
Day/Night Switch Auto, Schedule, Day, Night
Image Enhancement BLC, 3D DNR
Interface
Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage Built-in memory card slot, support microSD card, up to 256 GB
Built-in Microphone Yes
Hardware Reset Yes
Event
Basic Event Motion detection, video tampering alarm, exception
General
Linkage Method Upload to FTP/memory card, notify surveillance center, send email, trigger recording, trigger capture
Camera Material Aluminum alloy body
Camera Dimension Ø 120 mm × 92.2 mm (4.72" × 3.63")
Package Dimension 150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")
Camera Weight Approx. 440 g (1.0 lb.)
With Package Weight Approx. 680 g (1.5 lb.)
Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
Startup and Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
General Function Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
Power Consumption and Current 12 VDC, 0.4 A, max. 5 W PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.15 A, max. 6.5 W
Power Supply 12 VDC ± 25% PoE: 802.3af, Class 3
Power Interface Ø 5.5 mm coaxial power plug
Approval
EMC FCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
Safety UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
Environment CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Protection IP67 (IEC 60529-2013), IK10 (IEC 62262:2002)
