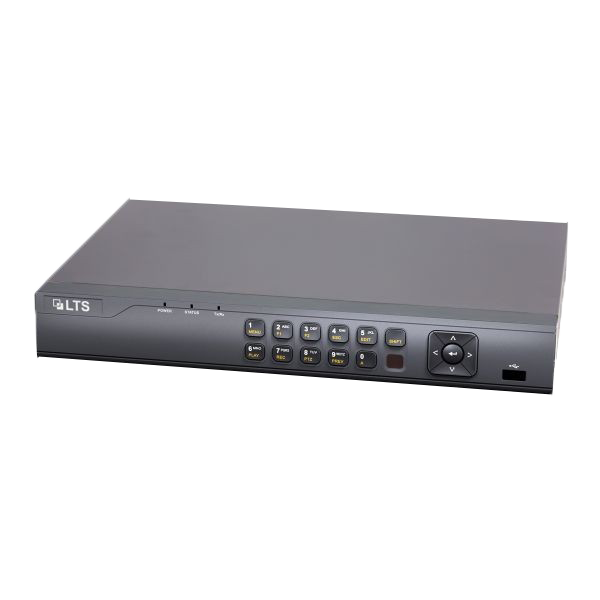

4 Channel NVR-P4

$229.00 USD
$229.00 USD
Sale Sold out

  • Up to 4-ch IP camera inputs

  • H.265+/H.265/H.264+/H.264 video formats

  • Up to 1-ch@8 MP/5-ch@1080p decoding capacity

  • Up to 40 Mbps incoming bandwidth

  • Recorder Series Platinum Series
    Recorder Channel 4-Channel
    Recorder Case mini 1U
    Recorder Technology IP / NVR
    Featured Product No
    Video No
    Specifications
    Video and Audio
    IP Video Input 4-ch
    Up to 8 MP resolution
    Incoming Bandwidth 40 Mbps
    Outgoing Bandwidth 80 Mbps
    HDMI Output 1-ch, 4K (4096 x 2160)/30 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz
    VGA Output 1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
    Video Output Mode HDMI/VGA simultaneous output
    CVBS Output N/A
    Audio Output 1-ch, RCA (Linear, 1 KΩ)
    Two-way Audio Input 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
    Decoding
    Decoding Format H.265+/H.265/H.264+/H.264
    Recording Resolution 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/2CIF/CIF/QCIF
    Synchronous Playback 4-ch
    Capability 1-ch@8 MP (30 fps)/5-ch@1080p (30 fps)
    Stream Type Video, Video & Audio
    Audio Compression G.711ulaw/G.711alaw/G.722/G.726
    Network
    Remote connection 16
    Network Protocol TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
    Network Interface 1, RJ-45 10/100 Mbps self-adaptive Ethernet interface
    PoE
    Interface 4, RJ-45 10/100 Mbps self-adaptive Ethernet interface
    Power ≤ 50 W
    Supported Standard IEEE 802.3 af/at
    Auxiliary Interface
    SATA 1 SATA interface
    Capacity Up to 8 TB capacity for each disk
    USB Interface Front panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0
    General
    Power Supply 48 VDC, 1.35 A
    Consumption (witdout HDD and PoE off) ≤ 10 W
    Working Temperature -10 °C to 55 °C (14 °F to 131 °F)
    Working Humidity 10% to 90%
    Dimension (W × D × H) 320 × 240 × 48 mm (12.4" × 9.4" × 1.9")
    Weight (without HDD) ≤ 1 kg (2.2 lb)
